Our Completed Projects

Precision-engineered process equipment delivered across India and international markets — each project built to ASME, IBR & customer specifications.

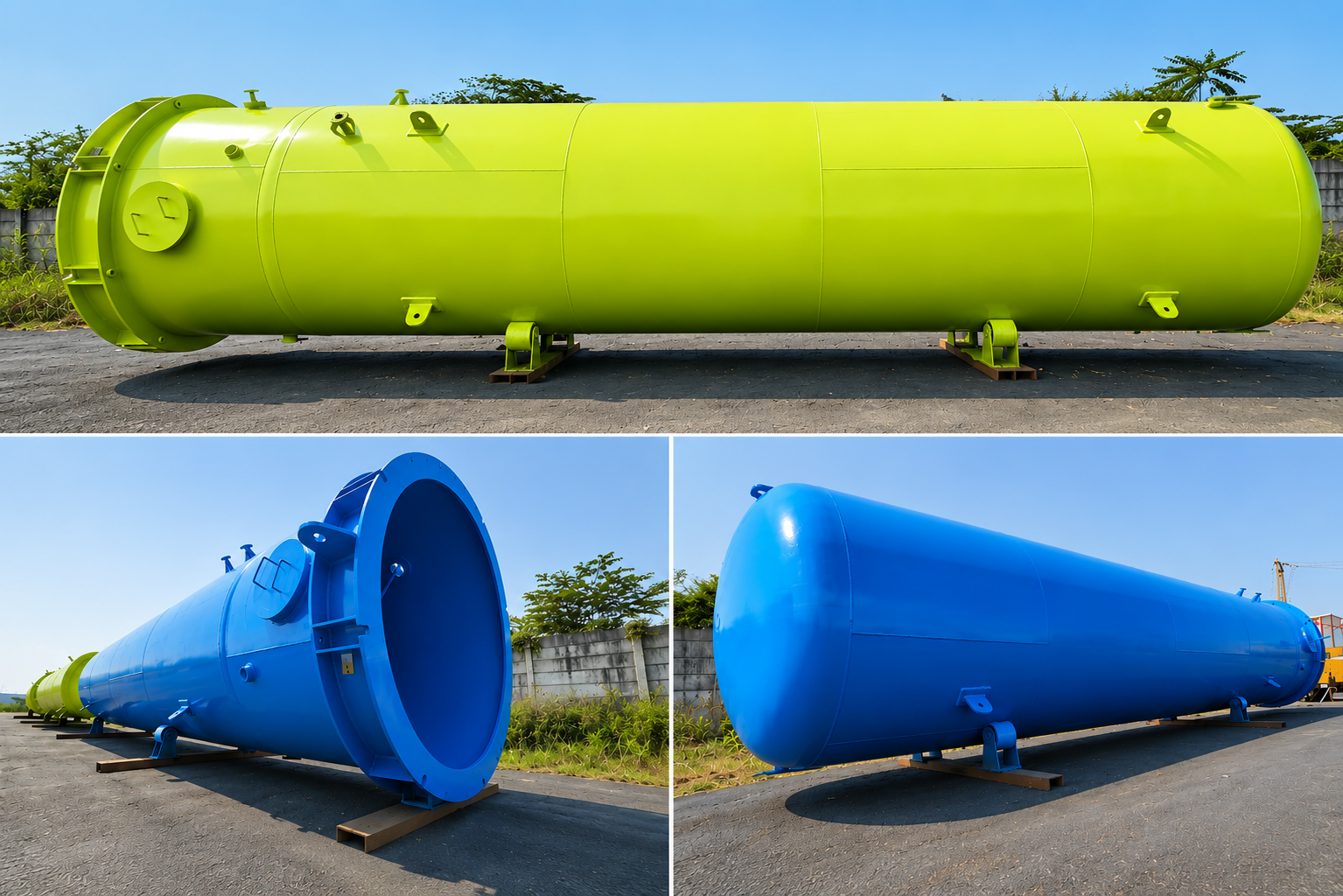

Hydrogen Peroxide Plant – 60 MTPD H₂O₂

Export • Indonesia

Hydrogen Peroxide Plant 60 MTPD process equipment exported to Indonesia by Creative Engineering Gujarat

Equipment	Hydrogen Peroxide Plant 60 MTPD H₂O₂
Location	Indonesia (Export)
Scope	32 Equipments Dispatched

Hydrogen Peroxide Plant – 60 MTPD H₂O₂ (View 2)

Export • Indonesia

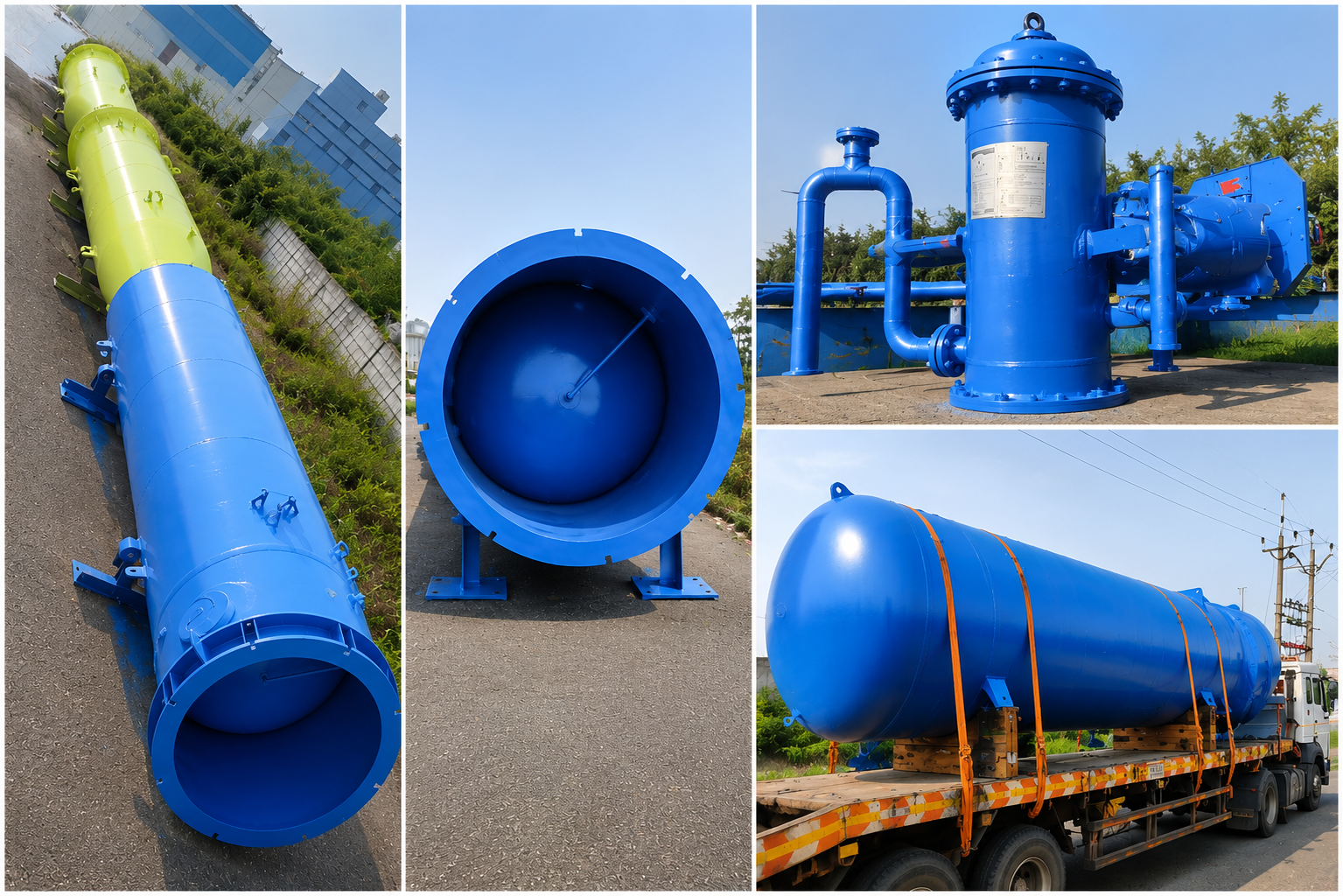

Hydrogen Peroxide Plant equipment view 2 – Creative Engineering export project Indonesia

Equipment	Hydrogen Peroxide Plant 60 MTPD H₂O₂
Location	Indonesia (Export)
Scope	32 Equipments – Continued

Condensate Blowcase

Export • Saudi Arabia

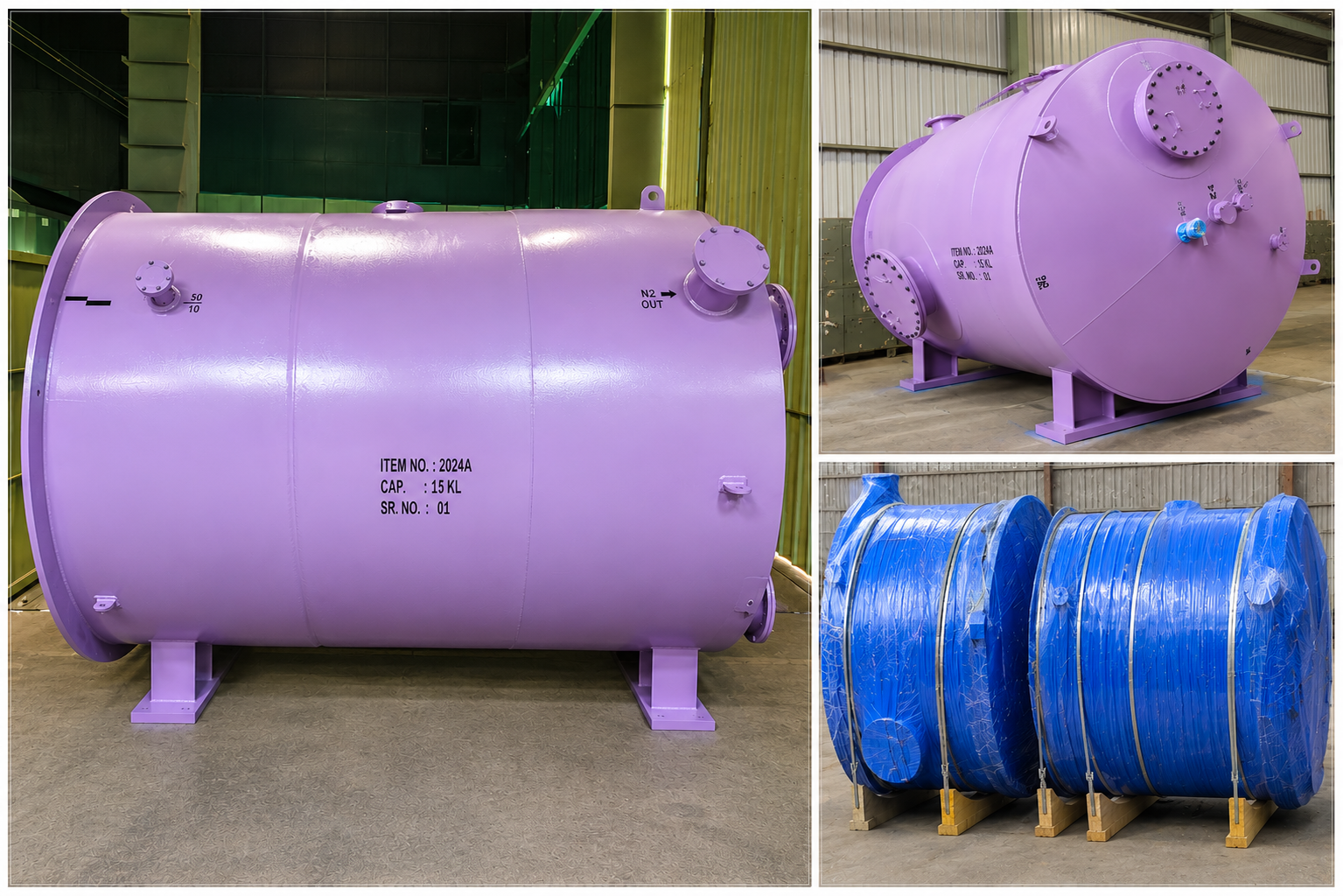

ASME U-Stamp Condensate Blowcase pressure vessel exported to Saudi Arabia – Creative Engineering

Equipment	Condensate Blowcase
Location	Saudi Arabia (Export)
Standard	ASME U-Stamp Pressure Vessel

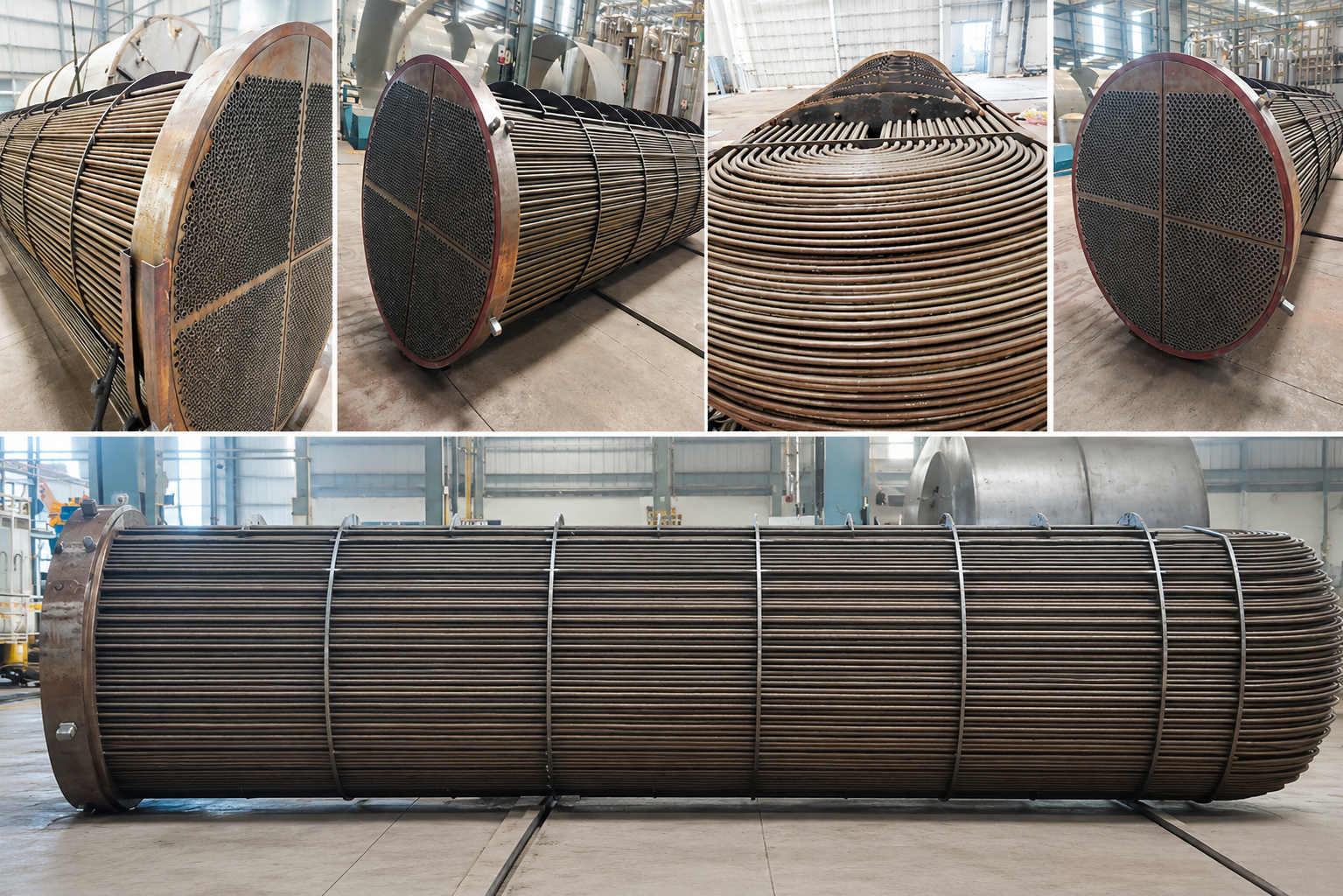

Shell & Tube Heat Exchanger

Dahej, Gujarat

Shell and tube heat exchanger 1200 sq.m SA 179 tubes manufactured by Creative Engineering for Dahej Gujarat

Equipment	Shell & Tube Heat Exchanger
Tube Sheet MOC	SA 266 GR-2 \| Thk: 200 mm
Tubes MOC	SA 179
Tube Length	6800 mm
HT Area	1200 sq.m
Weight	40 MT

Reactor – 14 KL

Dahej, Gujarat

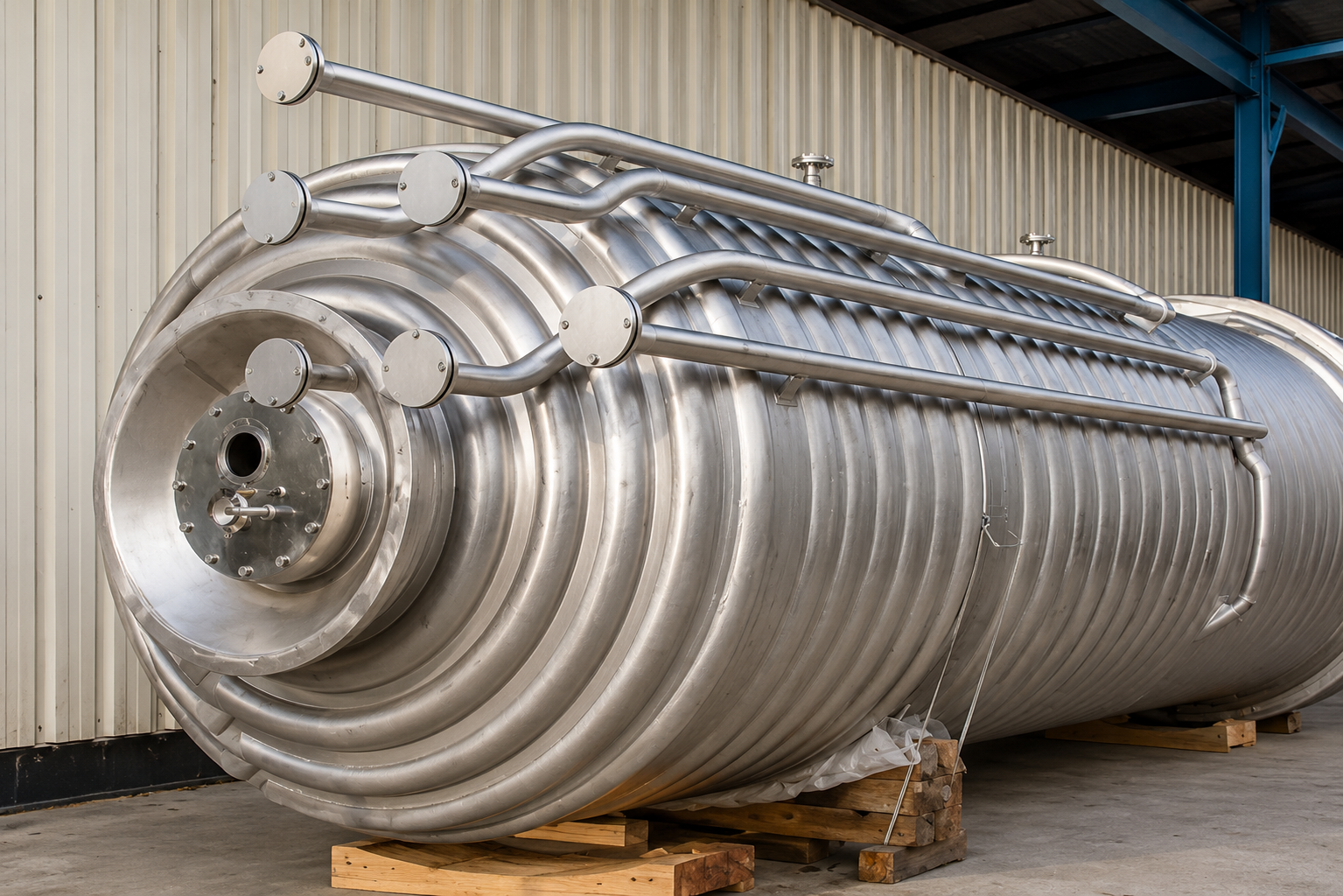

14 KL Duplex Super Duplex reactor with internal coil and limpet coil 400 RPM – Creative Engineering Dahej Gujarat

Equipment	Reactor – 14 KL
Pressure	22 KG/CM² \| 400 RPM
Features	100% Radiography \| Internal Coil \| Limpet Coil
MOC	Duplex / Super Duplex

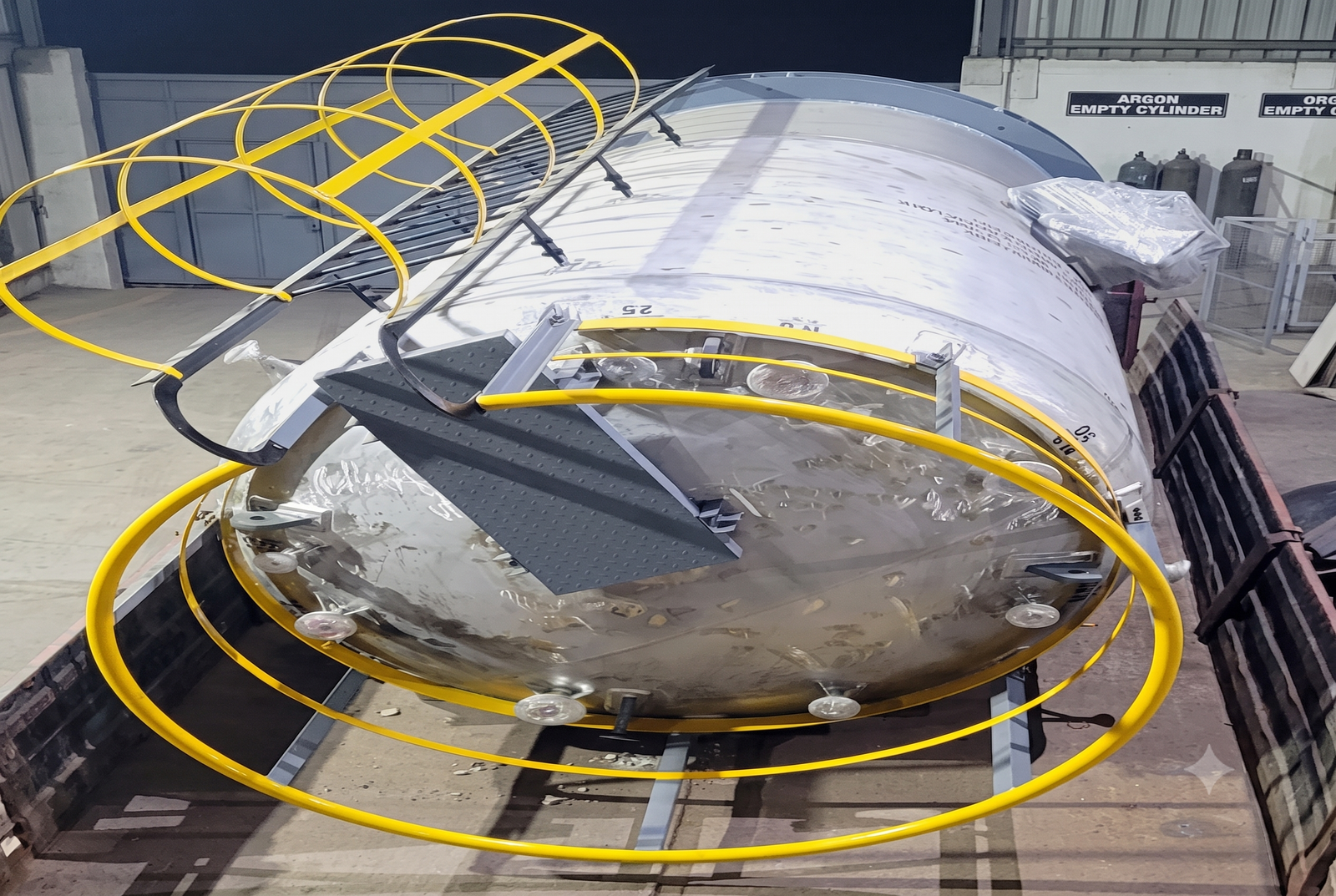

Nitrogen Buffer Tank – 11.82 KL

Dahej, Gujarat

Nitrogen Buffer Tank 11.82 KL SS 316L 26 KG/CM² – Creative Engineering Dahej Gujarat

Equipment	Nitrogen Buffer Tank – 11.82 KL
MOC	SS 316L
Pressure	26 KG/CM²

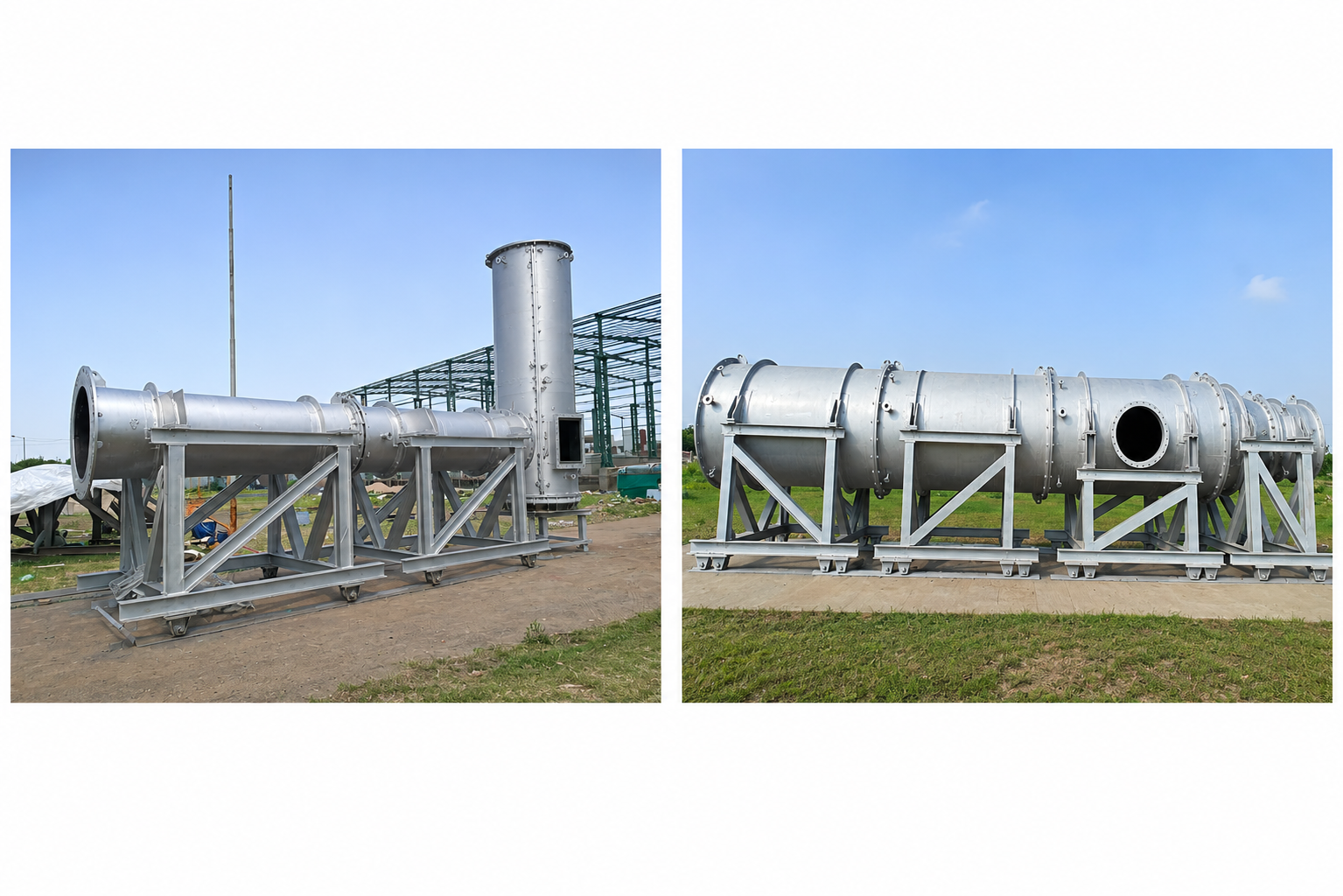

Reactor – SA 516 GR. 70

Gujarat

Reactor SA 516 GR 70 carbon steel manufactured by Creative Engineering Gujarat

Equipment	Reactor
MOC	SA 516 GR. 70

50 KL Limpeted Vessel

Gujarat

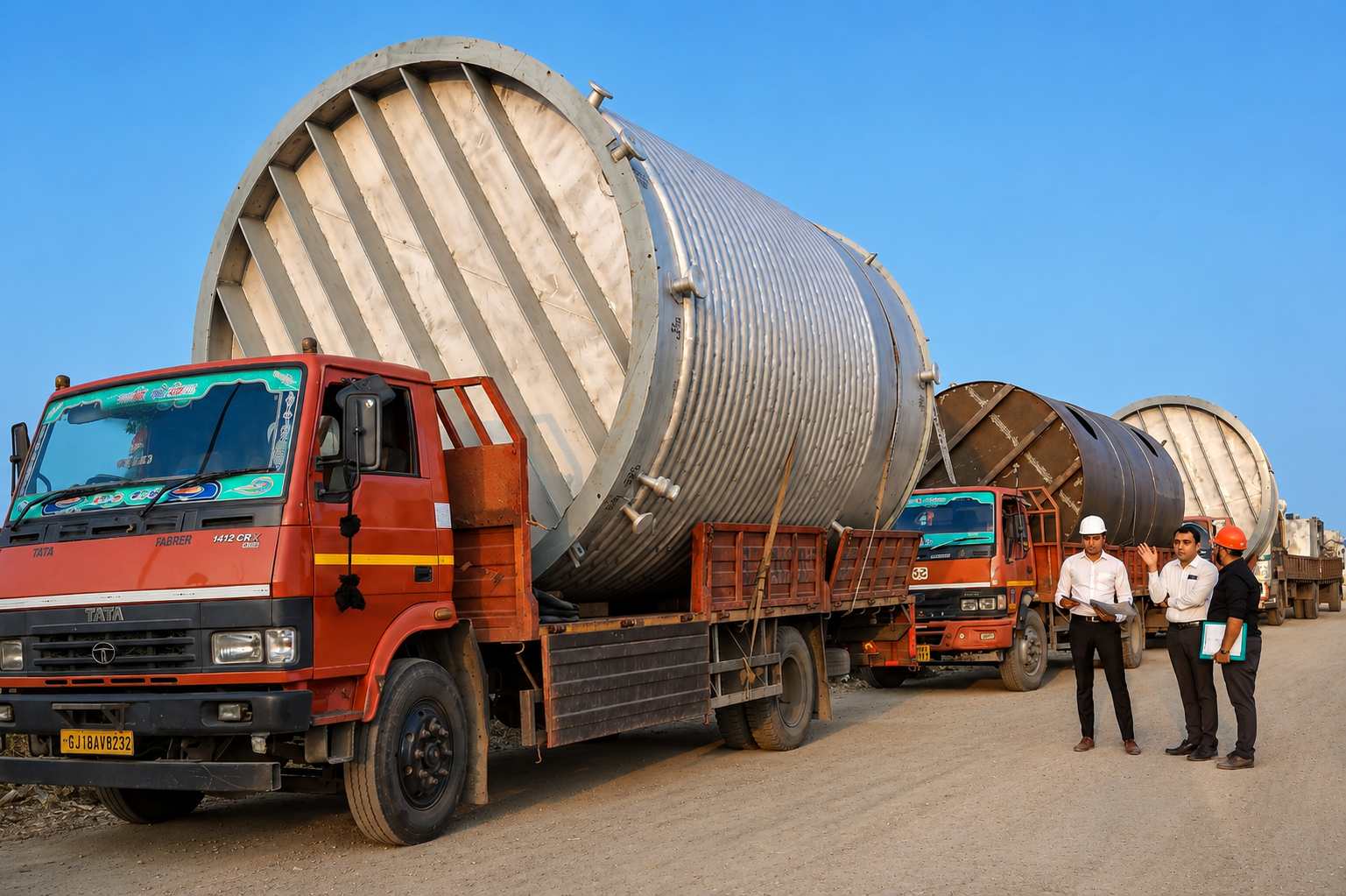

50 KL Limpeted Vessel SS 304 3500 ID x 5500 LG x 8 THK – Creative Engineering Gujarat

Equipment	50 KL Limpeted Vessel
Dimensions	3500 ID × 5500 LG × 8 THK mm
MOC	SS 304

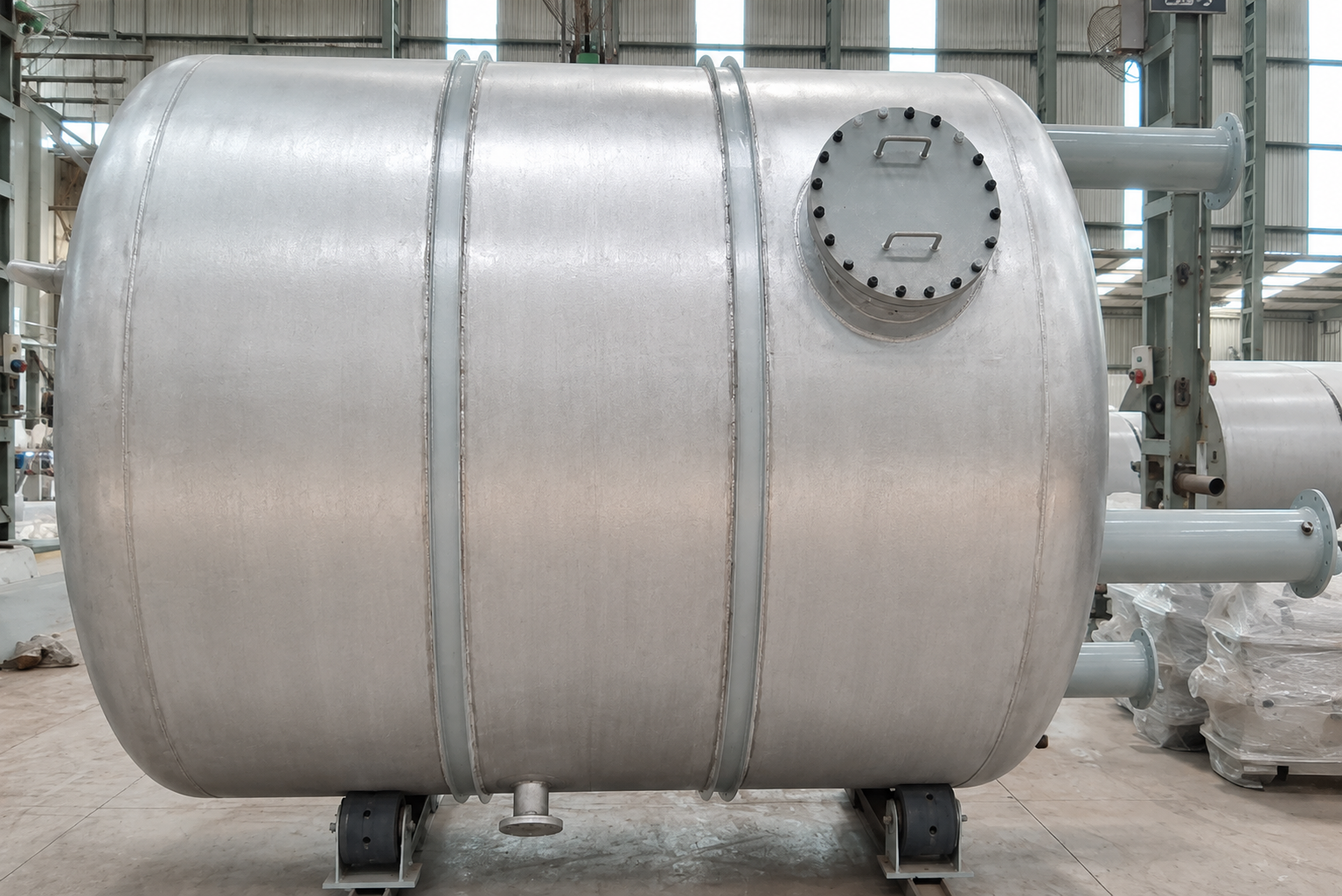

Pressure Vessel – 15 KL

Gujarat

15 KL SS 304 Pressure Vessel 18 KG/CM² 2530 ID – Creative Engineering Gujarat

Equipment	Pressure Vessel – 15 KL
Pressure	18 KG/CM²
Dimensions	2530 ID × 3000 LG × 8 THK mm
MOC	SS 304

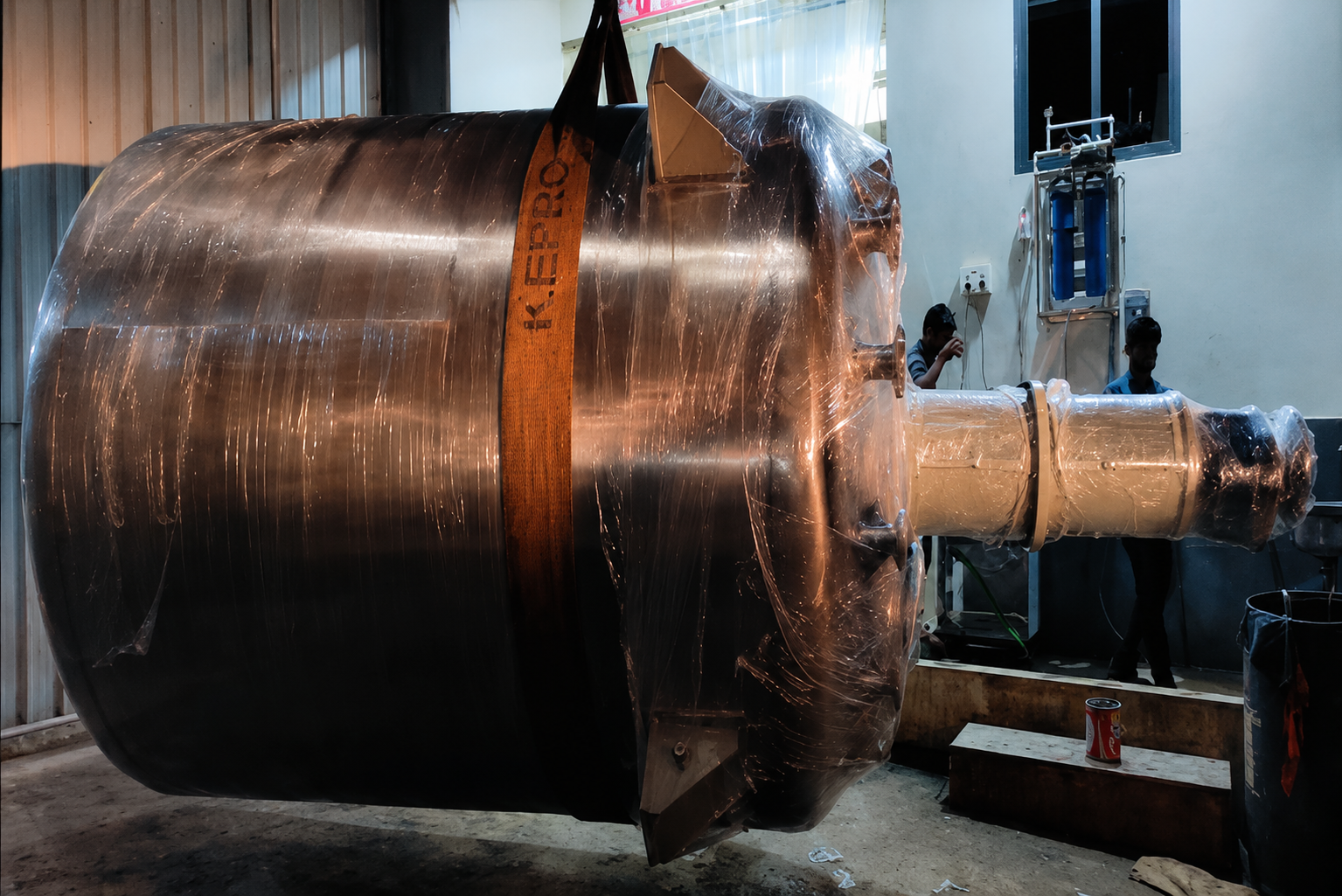

60 KL Storage Vessel

Gujarat

60 KL Storage Vessel SA 516 GR 70 3000 ID x 9702 LH manufactured by Creative Engineering Gujarat

Equipment	60 KL Storage Vessel
Dimensions	3000 ID × 9702 LH × 12/14 THK mm
MOC	SA 516 GR. 70

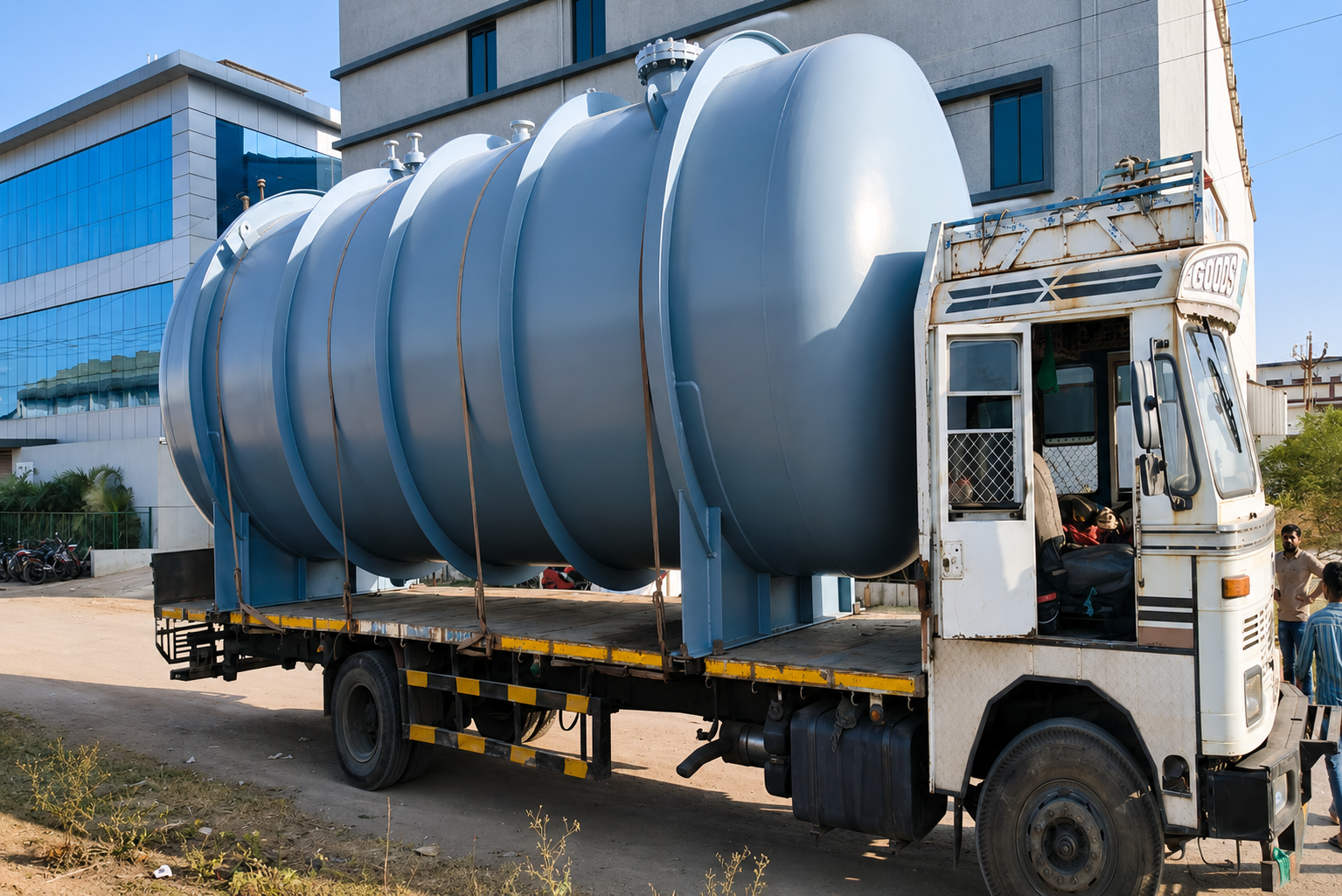

5 KL / 10 KL Reactors – SS 316

Gujarat

5 KL and 10 KL SS 316 Reactors 4 nos – Creative Engineering Gujarat

Equipment	5 KL / 10 KL Reactor
MOC	SS 316
Qty	4 Nos

10 KL + 5 KL Reactors – SS 316L

Gujarat

10 KL and 5 KL SS 316L Reactors 8 nos – Creative Engineering Gujarat

Equipment	10 KL + 5 KL Reactor
MOC	SS 316L
Qty	8 Nos

200 KL Storage Tank

Jhagadia, Gujarat

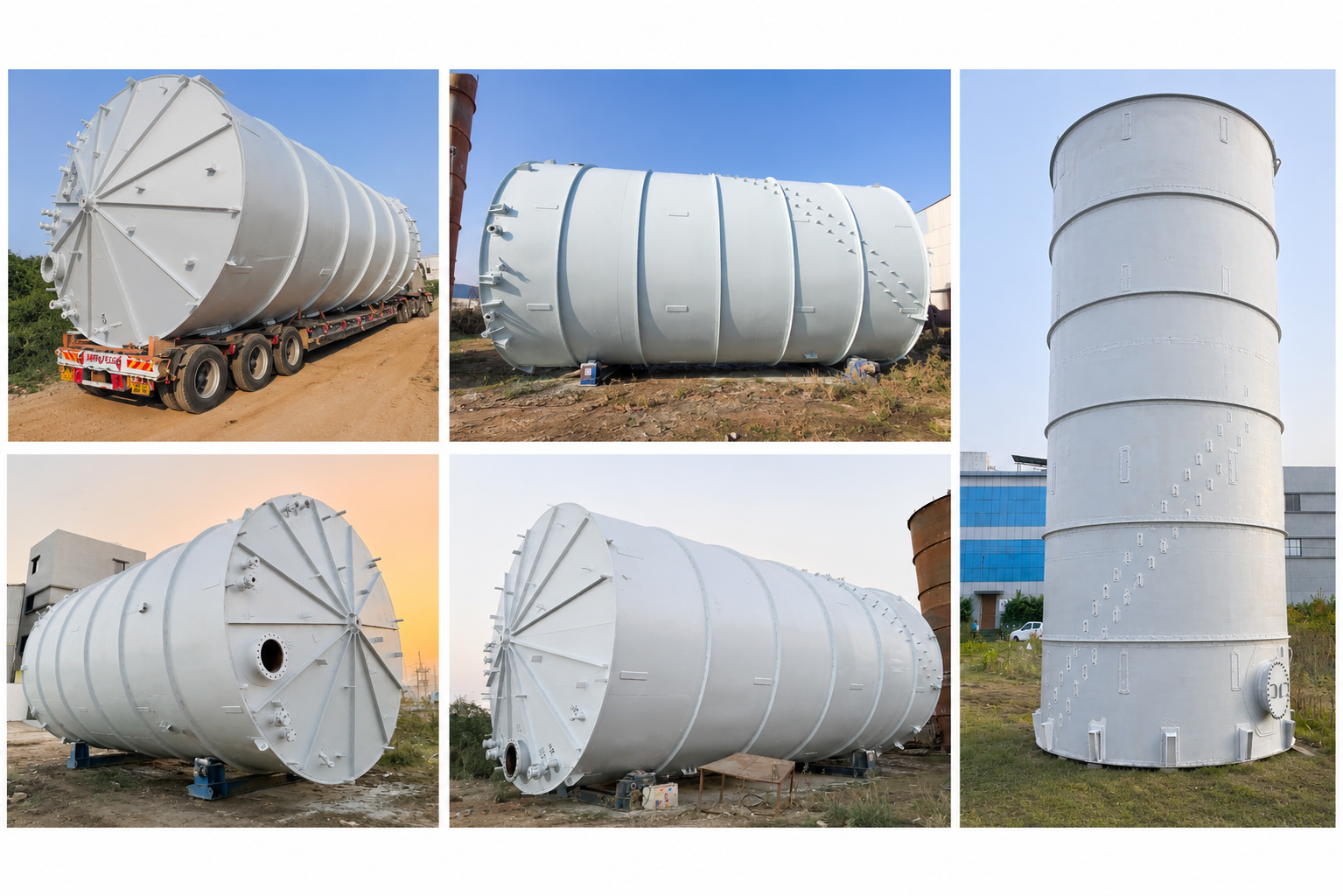

200 KL large capacity storage tank manufactured by Creative Engineering Jhagadia Gujarat

Equipment	200 KL Storage Tank
Location	Jhagadia, Gujarat

Inconel 600 Pipe Spool Fabrication

Dahej, Gujarat

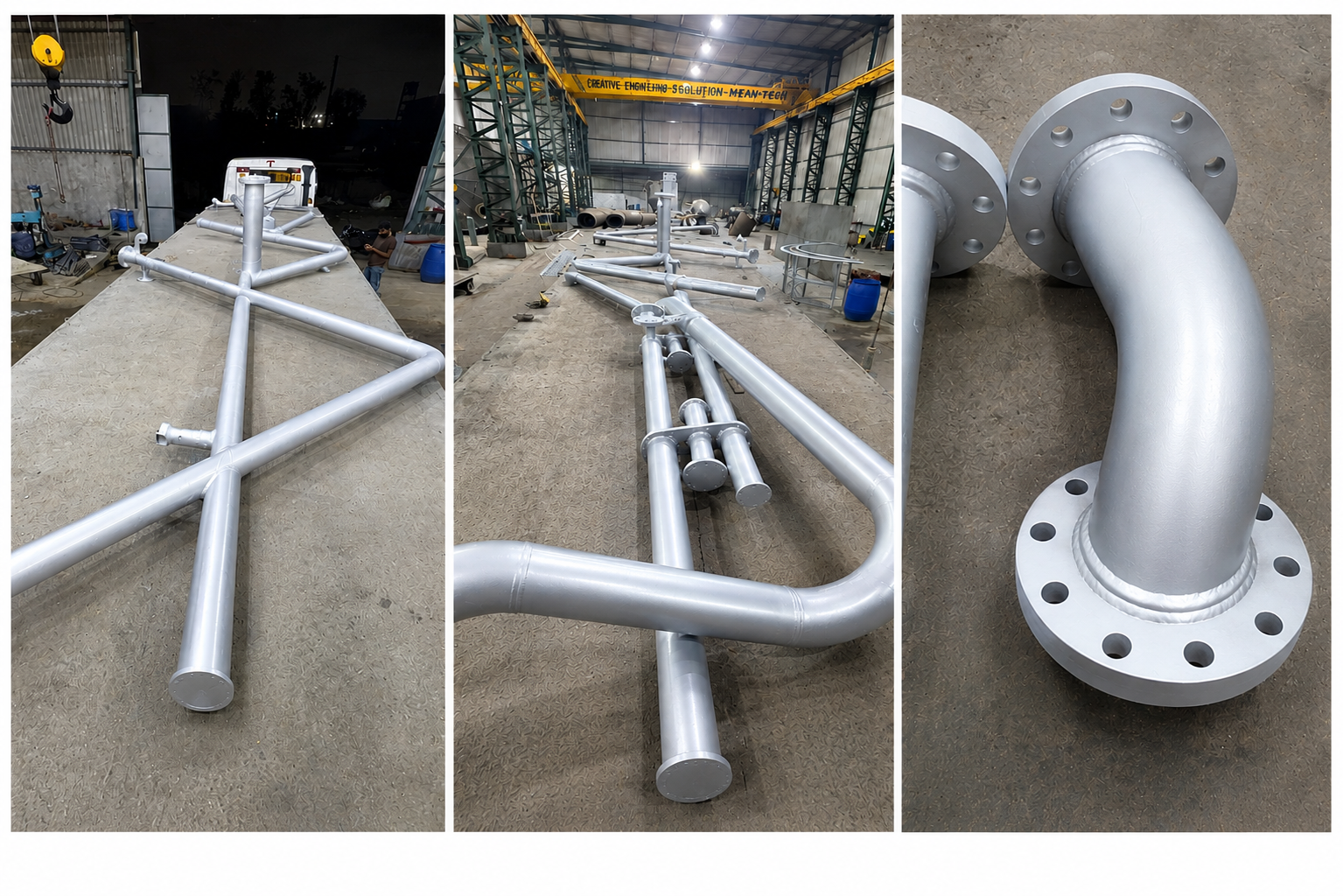

Inconel 600 pipe spool fabrication Dahej Gujarat – Creative Engineering specialty alloy piping

Equipment	Inconel 600 Pipe Spool Fabrication
Location	Dahej, Gujarat
Material	Inconel 600

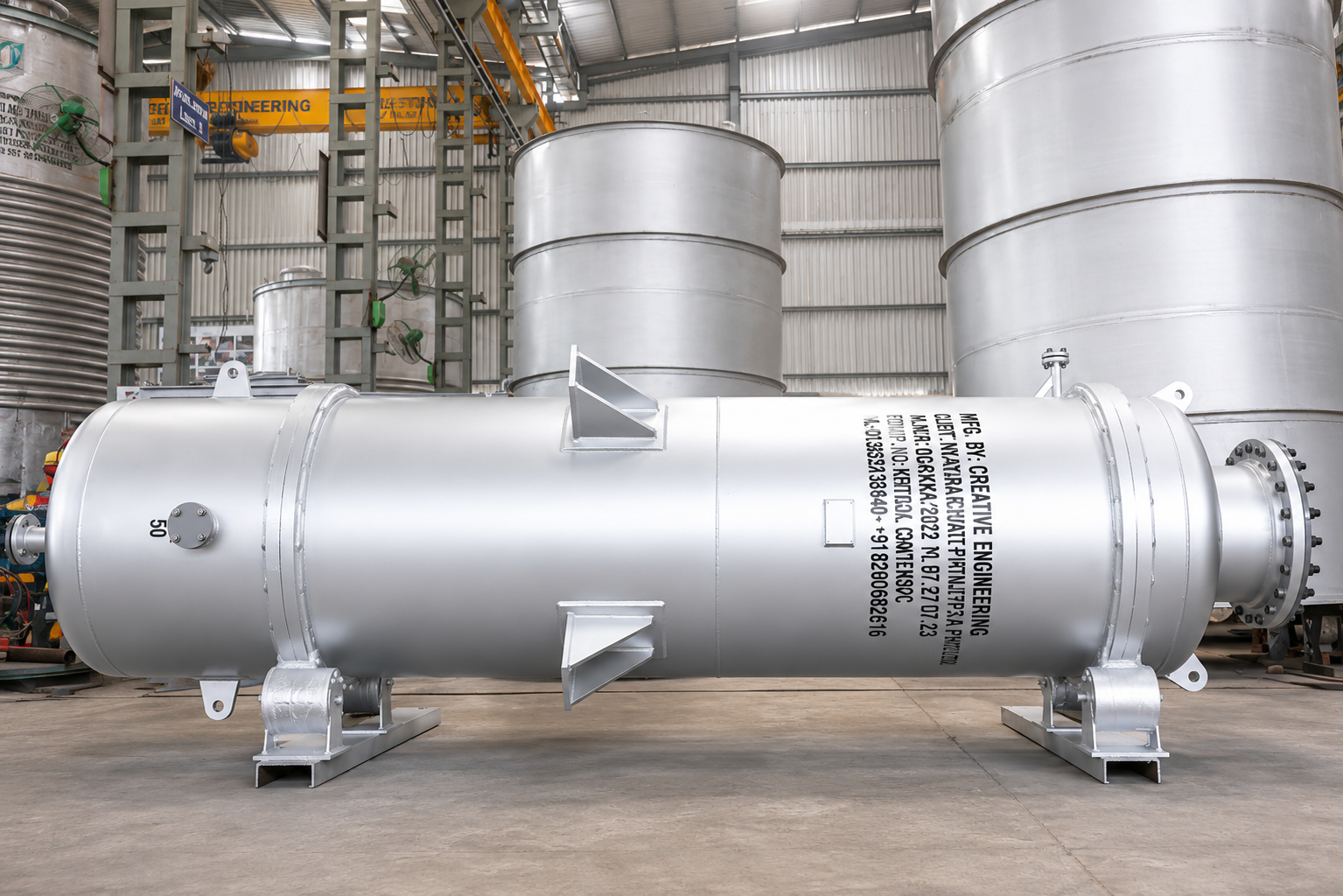

Heat Exchanger – SS 304

Gujarat

Heat exchanger SS 304 208 sq.m heat transfer area – Creative Engineering Gujarat

Equipment	Heat Exchanger
MOC	SS 304
HT Area	208 M²

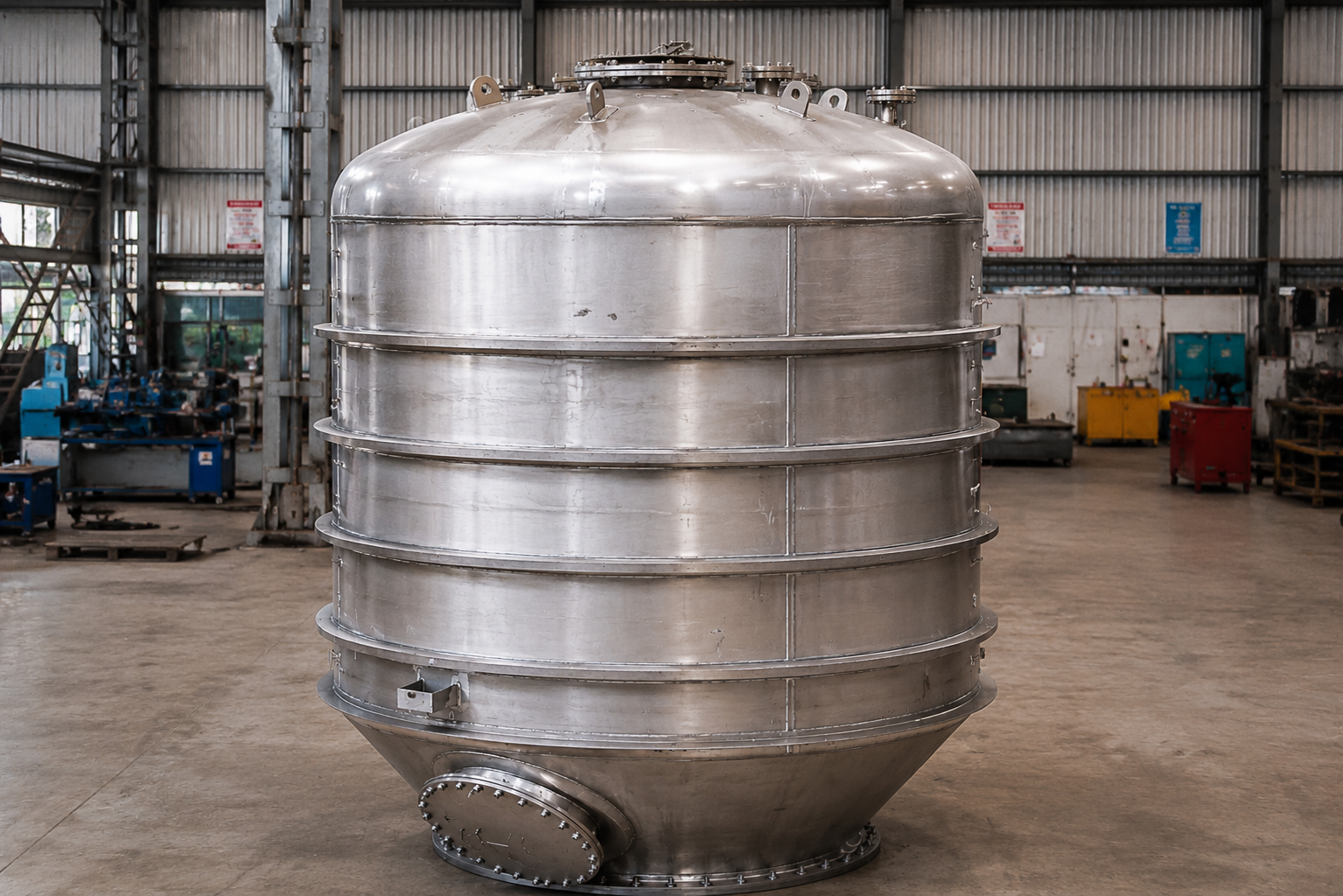

Concentrator Evaporator Body

Gujarat

Top body Concentrator Evaporator SS 316L Triflex Rubber Lining 3.2M dia 4.4M height – Creative Engineering

Equipment	Top Body – Concentrator Evaporator
MOC	SS 316L + Triflex Rubber Lining
Dimensions	Dia: 3.2 M \| Ht: 4.4 M

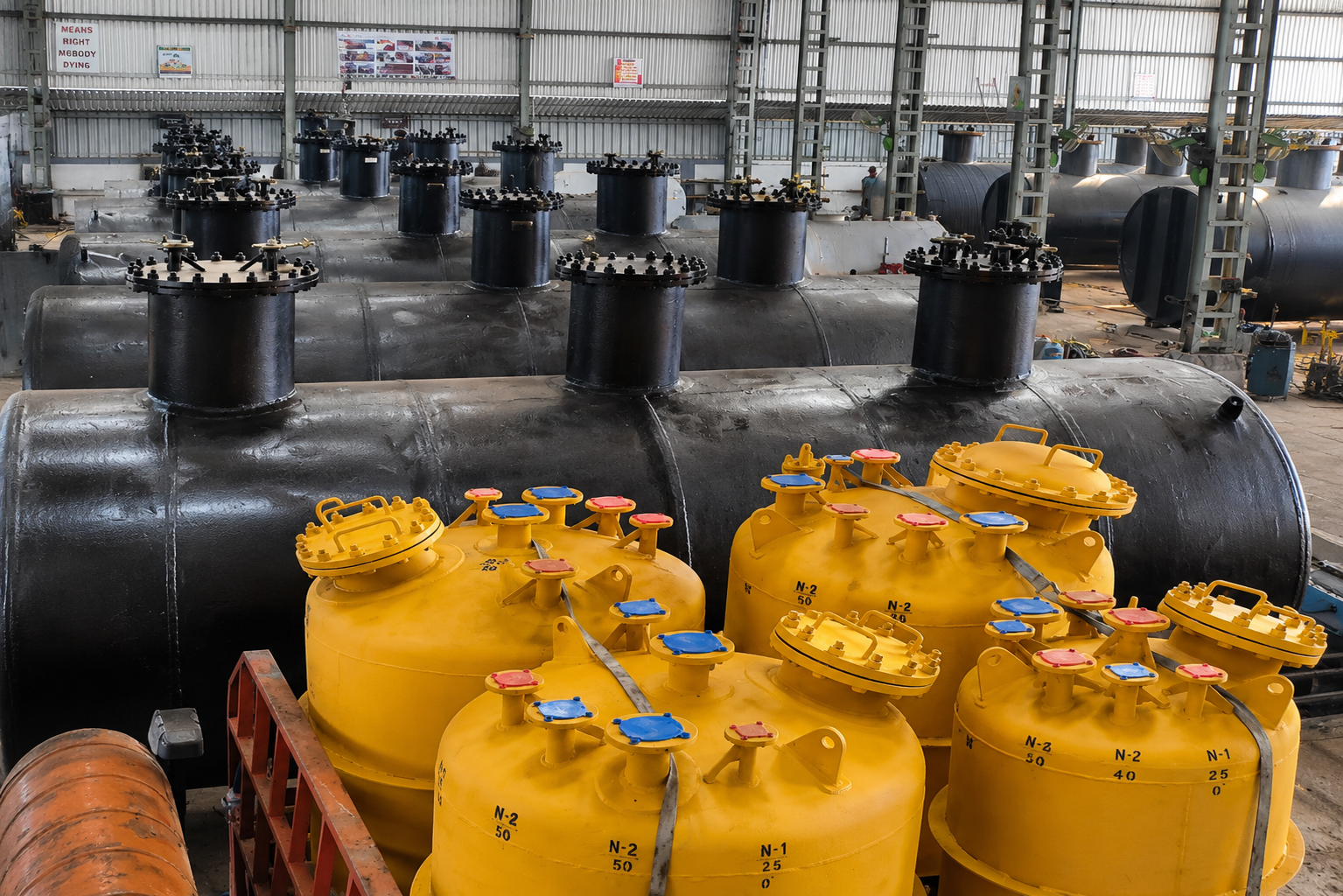

PESO Tank with Bitumen Lining – 30 KL × 10 Nos

Gujarat

PESO approved 30 KL Carbon Steel storage tank with Bitumen lining 2650 ID – Creative Engineering Gujarat

Equipment	PESO Tank with Bitumen Lining – 30 KL
Dimensions	2650 ID × 6000 LG × 8 THK mm
MOC	Carbon Steel
Qty	10 Nos

Pressure Vessel – 0.16 M³ at 45 KG/CM²

Gujarat

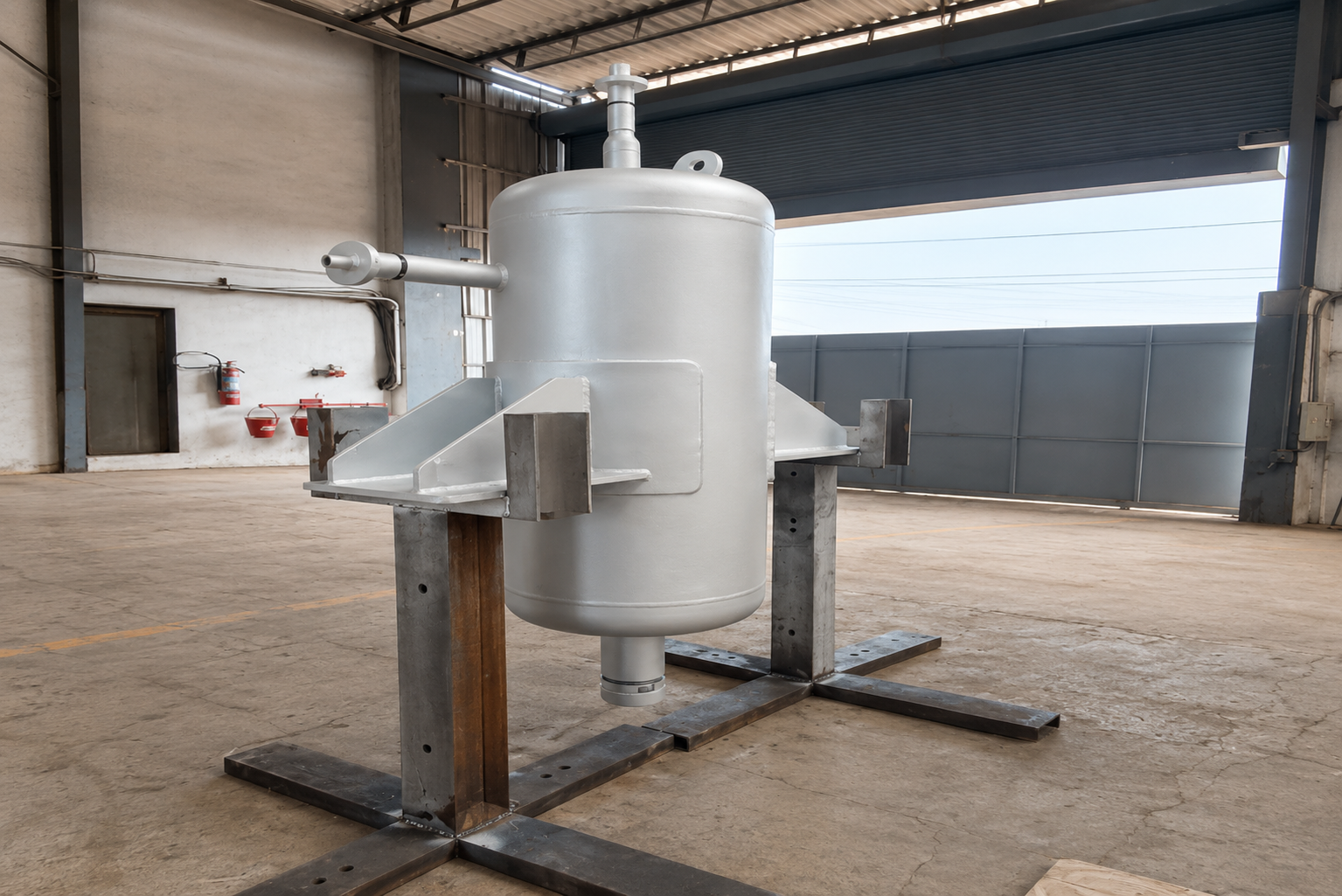

High pressure vessel 0.16 m³ at 45 KG/CM² Carbon Steel – Creative Engineering Gujarat

Equipment	Pressure Vessel – 0.16 M³
Pressure	45 KG/CM²
MOC	Carbon Steel

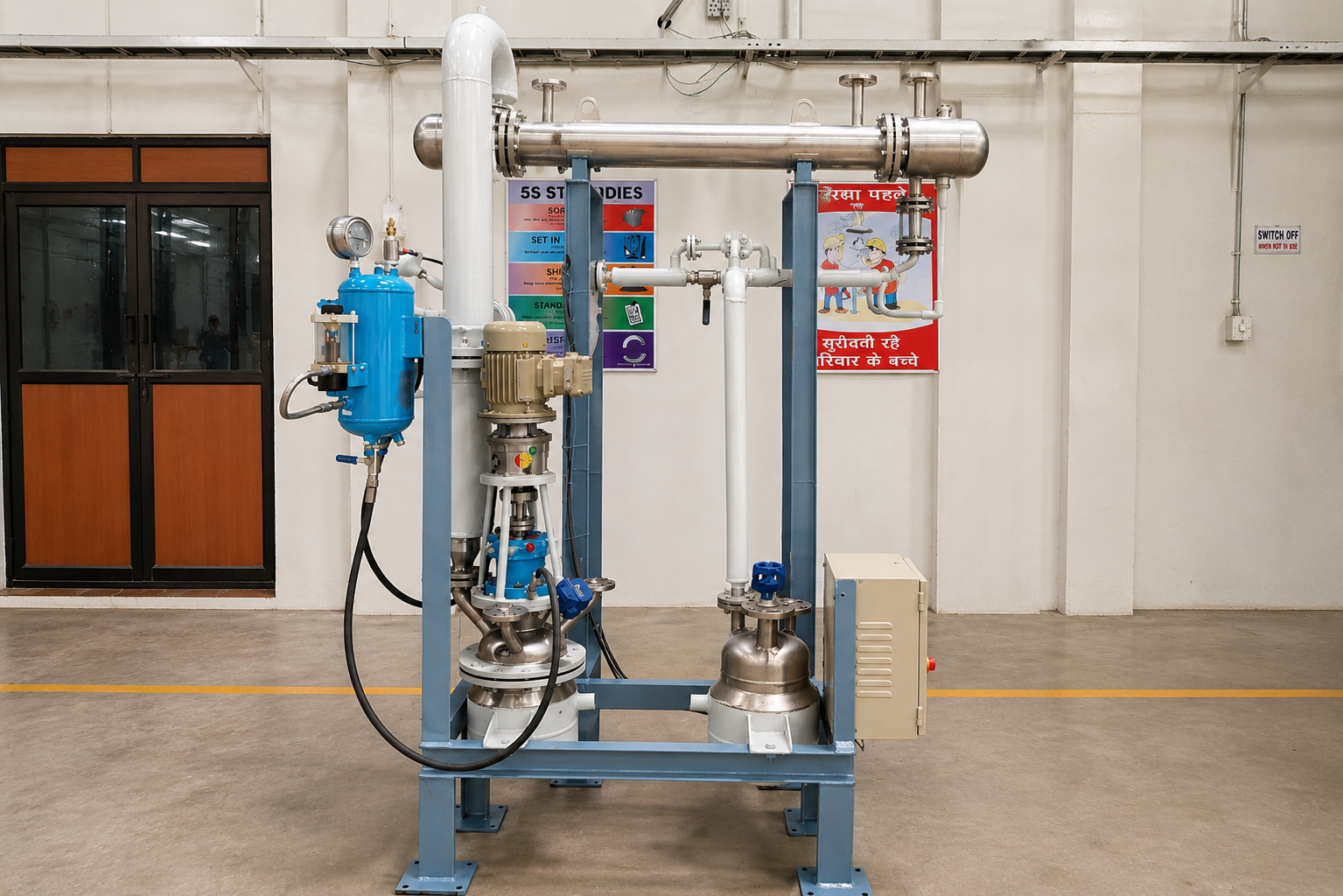

Skid Plant Setup – SS 316

Gujarat

Skid mounted plant setup SS 316 process equipment – Creative Engineering Gujarat

Equipment	Skid Plant Setup
MOC	SS 316
Qty	02 Nos

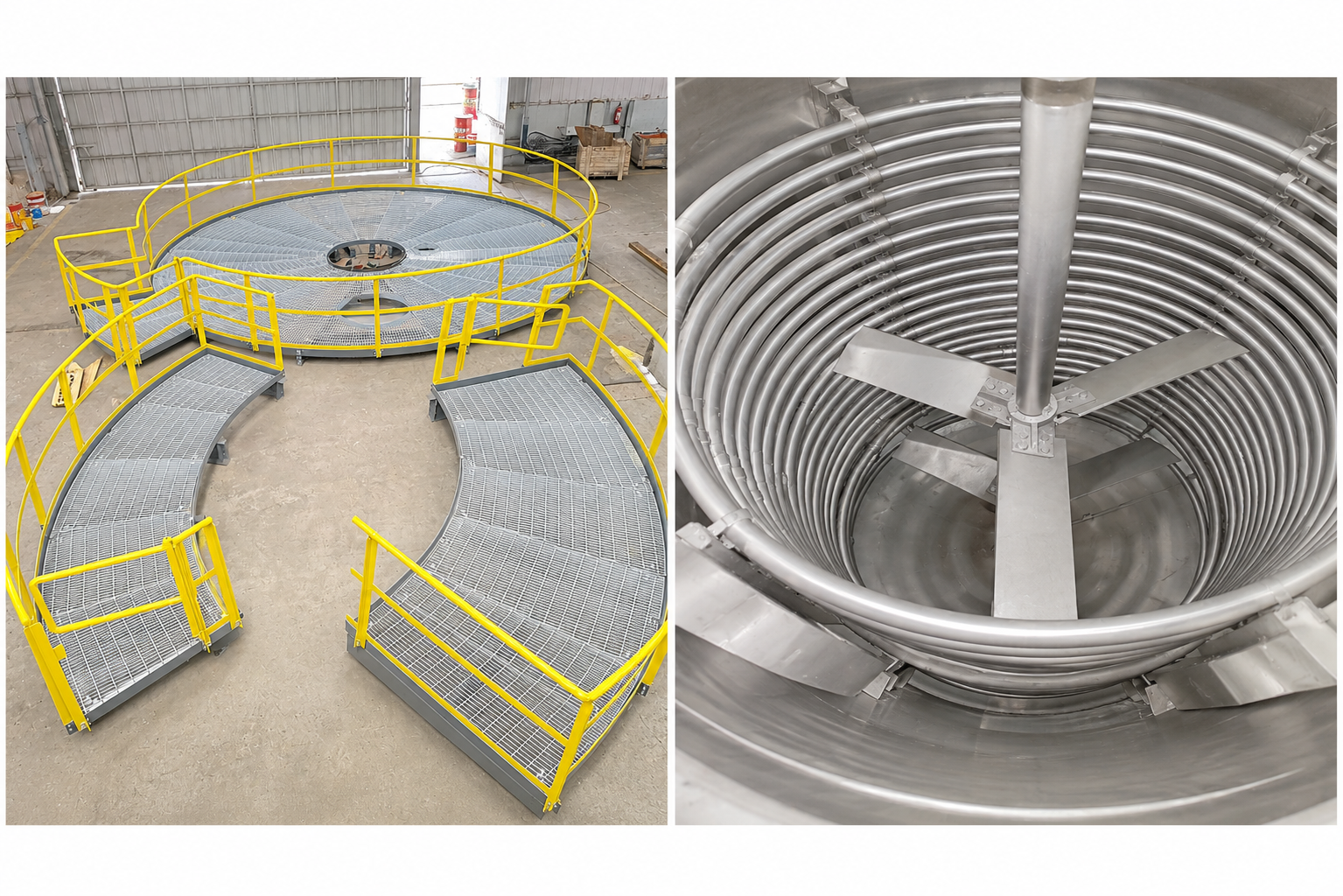

Reactor with Internal Coil – 9 KL

Gujarat

9 KL SS 316L Reactor with internal coil – Creative Engineering Gujarat

Equipment	Reactor with Internal Coil – 9 KL
MOC	SS 316L

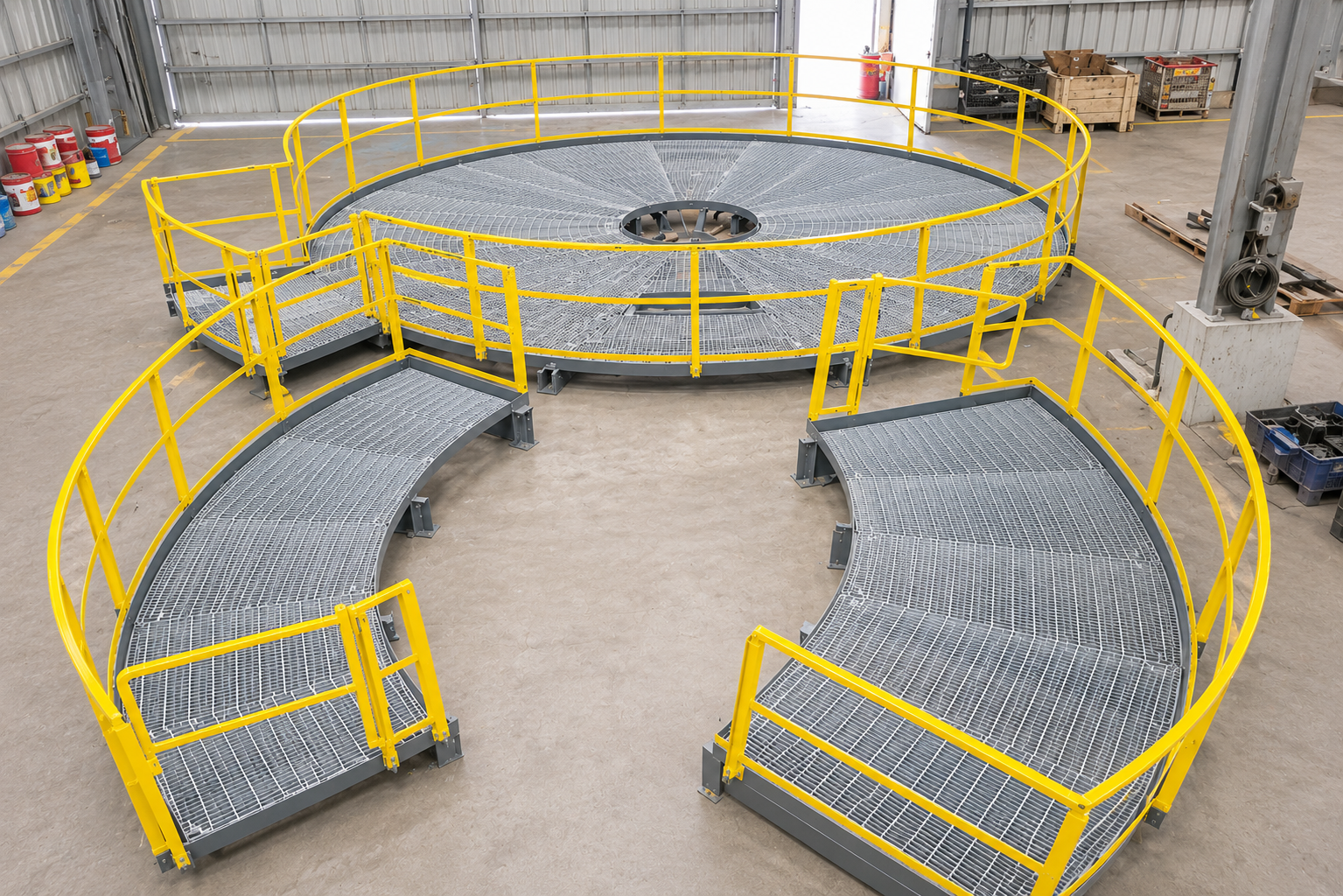

Structure Platform – 6.2 M Dia

Gujarat

MS structure platform 6.2 metre diameter fabricated by Creative Engineering Gujarat

Equipment	Structure Platform
MOC	MS (Mild Steel)
Dimensions	6.2 M Dia

35 KL Storage Tank – SS 316L

Gujarat

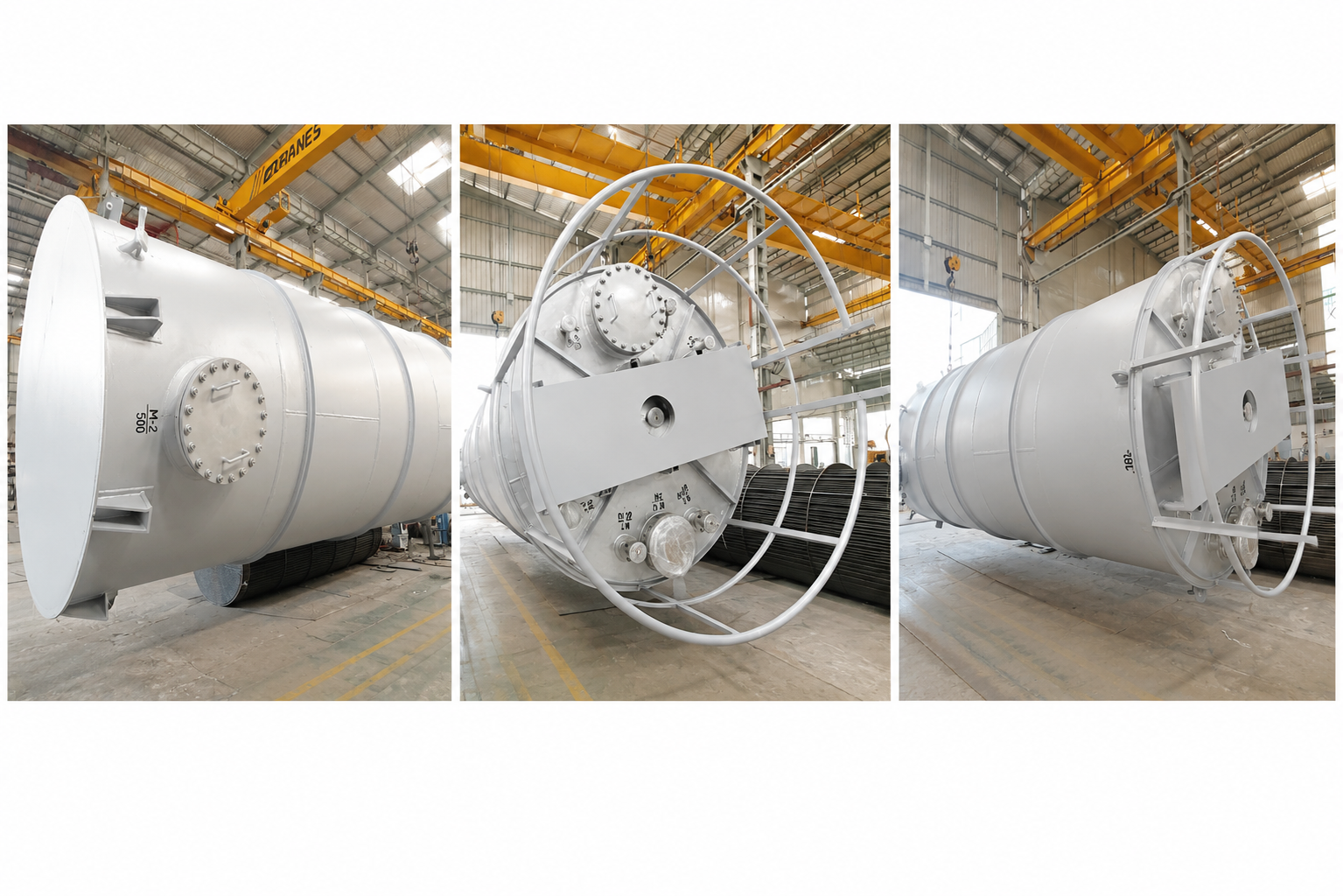

35 KL SS 316L Storage Tank 2550 ID x 7500H x 8 THK manufactured by Creative Engineering Gujarat

Equipment	35 KL Storage Tank
Dimensions	2550 ID × 7500 H × 8 THK mm
MOC	SS 316L

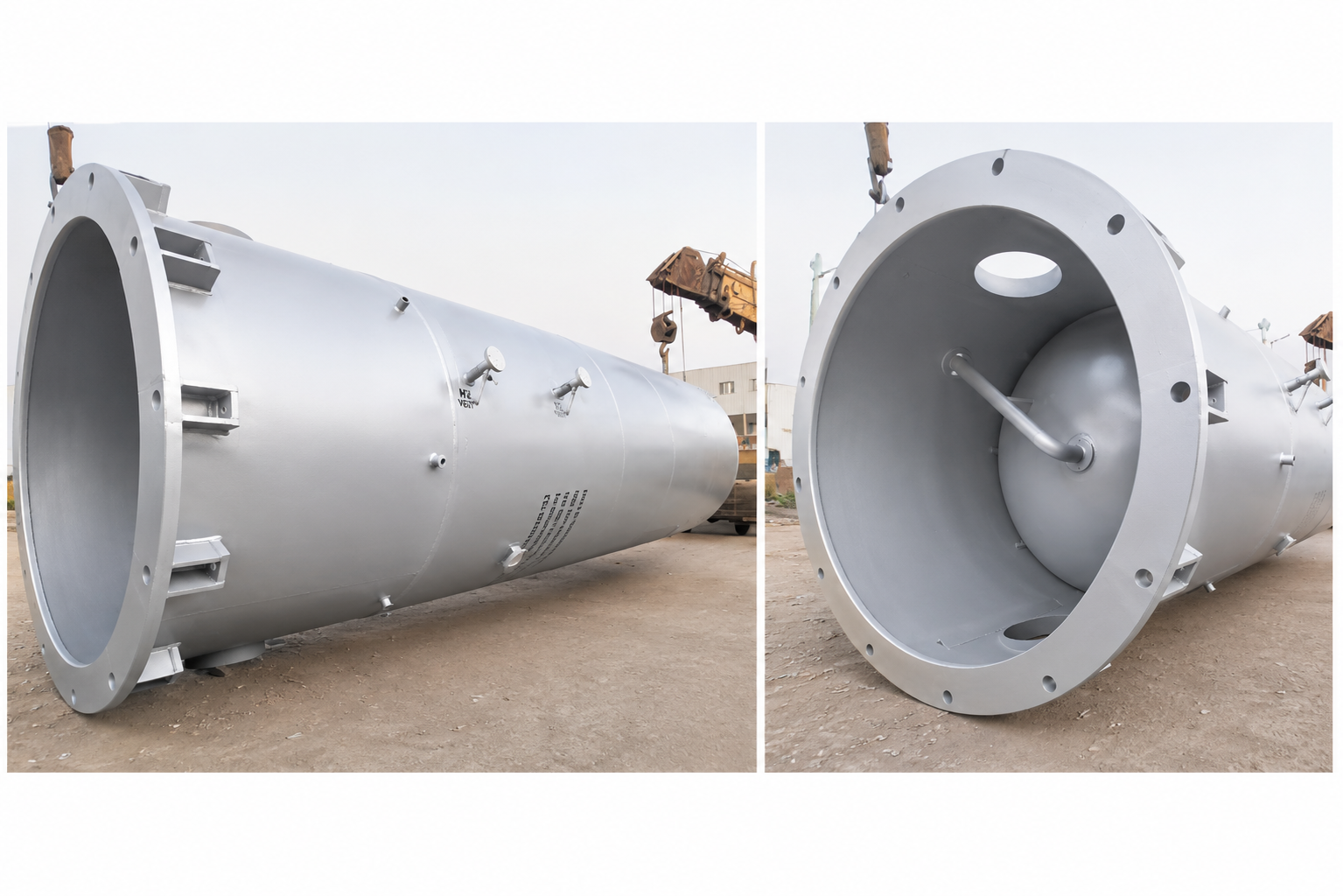

Exhaust Separator – 22 KL

Gujarat

22 KL Carbon Steel Exhaust Separator manufactured by Creative Engineering Gujarat

Equipment	Exhaust Separator
Capacity	22 KL
MOC	Carbon Steel (CS)

More projects are added regularly. Contact us to discuss your requirements.
