Industrial Reactor

Precision-Engineered Reactors and Reaction Vessels with a Wide Range of Agitators for Oil & Gas, Agro, Specialty Chemicals, APIs and Intermediates, Petrochemicals, Pharmaceutical Equipment, Fertilizers, and Distillation Systems. As a leading reactor manufacturer serving Ankleshwar, Bharuch, Vadodara and Ahmedabad, we build jacketed, stainless steel and GMP reactors for chemical and pharmaceutical industries across India.

View Specifications

1 / 3

Available Agitator Types

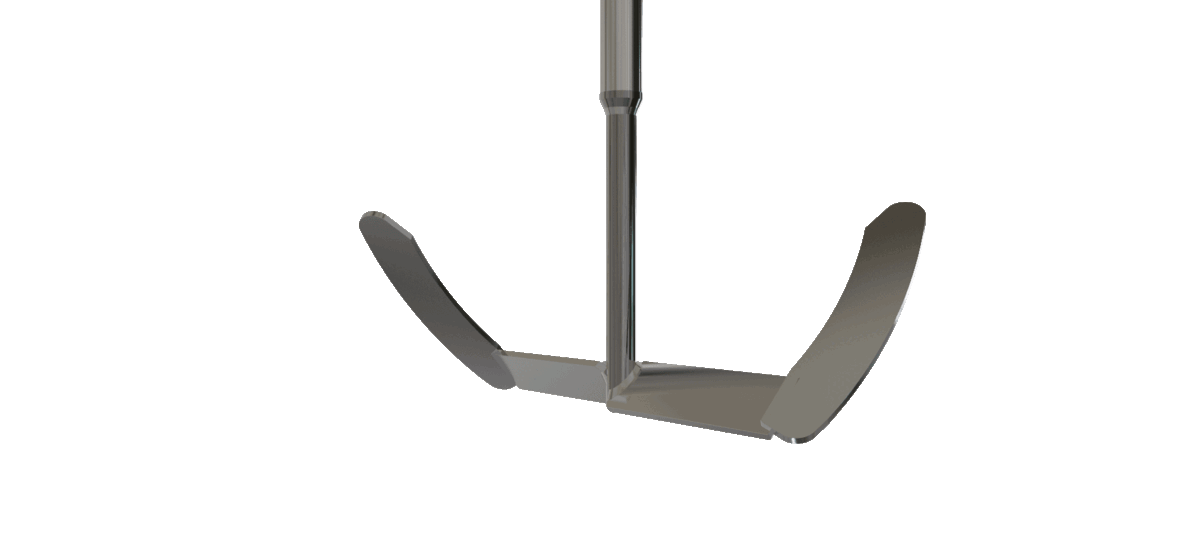

Anchor

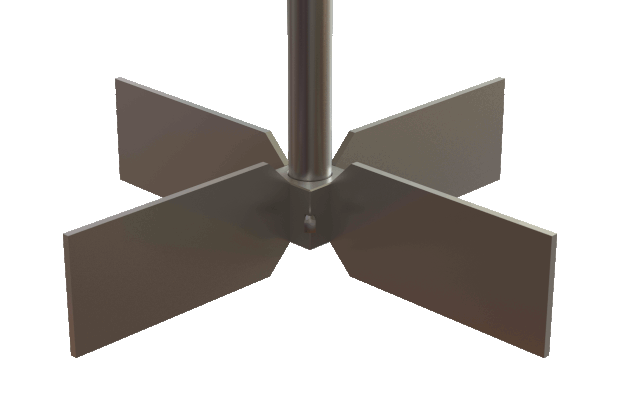

Turbine

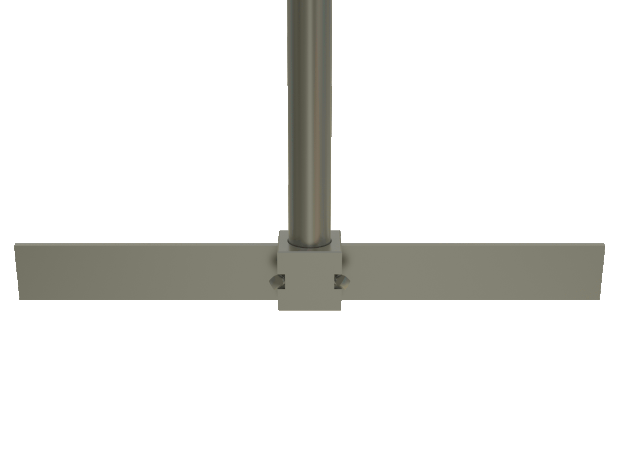

Paddle

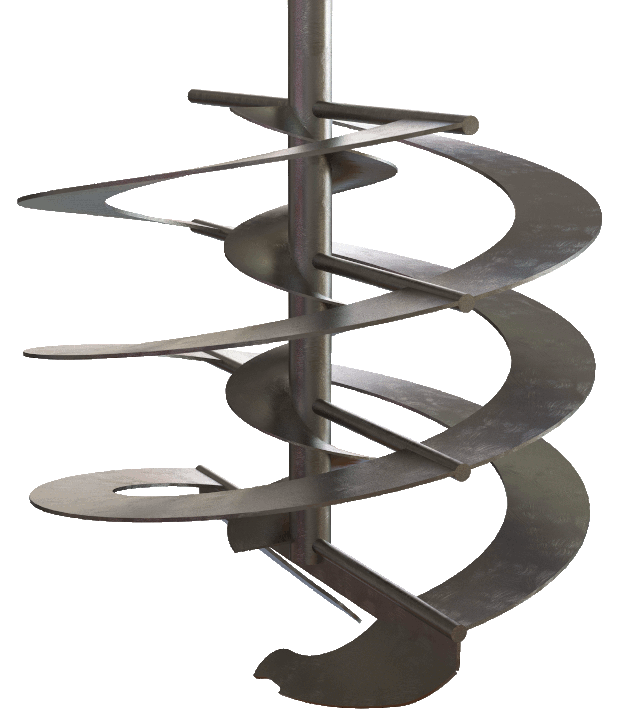

Helical

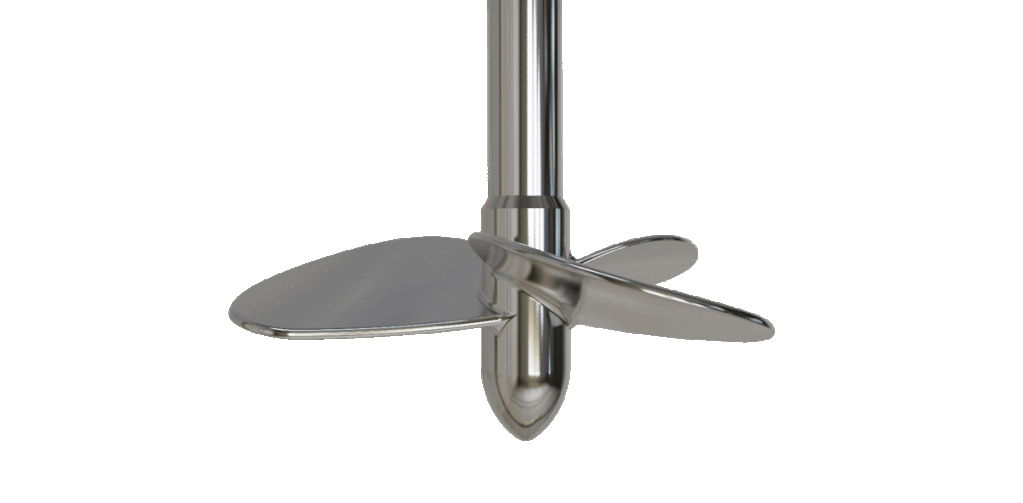

Propeller

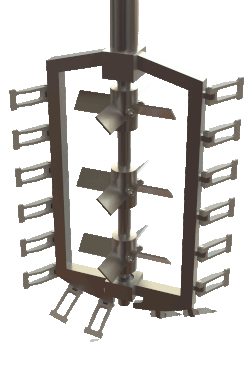

Maxblend

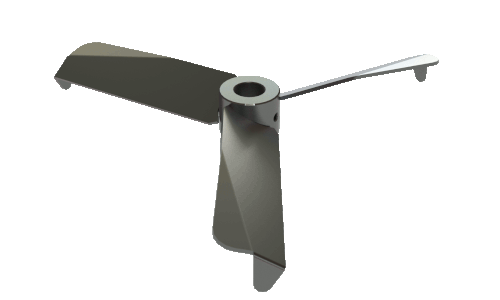

Retreat Curve

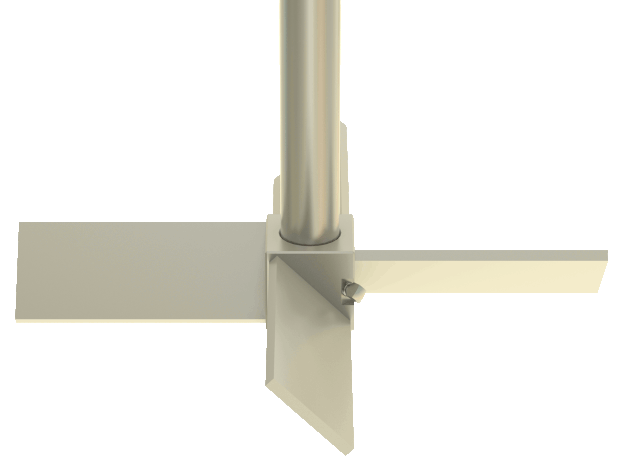

Pitched Blade

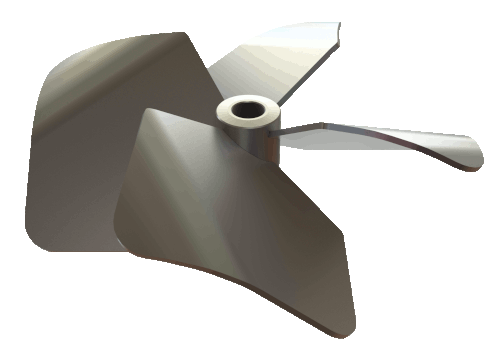

Hydrofoil

Anchor Impeller

Reactor Types

Available Configurations

Every reactor is made-to-order to exact client specifications. Choose from standard configurations or request a hybrid design — our engineering team will size, design, and fabricate it to your process requirements.

Jacketed Reactor

Full outer jacket for efficient heating or cooling. Ideal for temperature-sensitive reactions requiring uniform thermal control across the vessel wall.

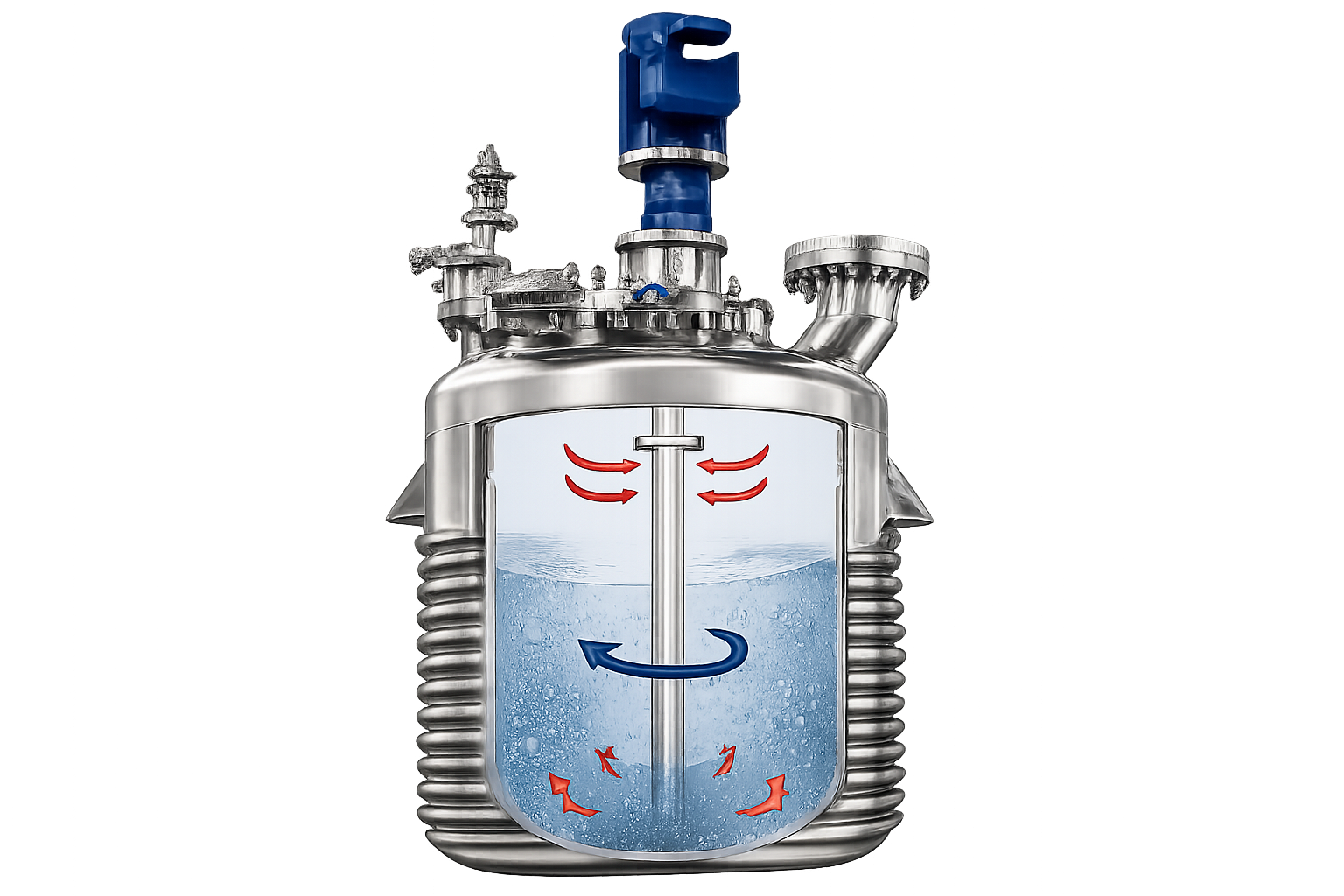

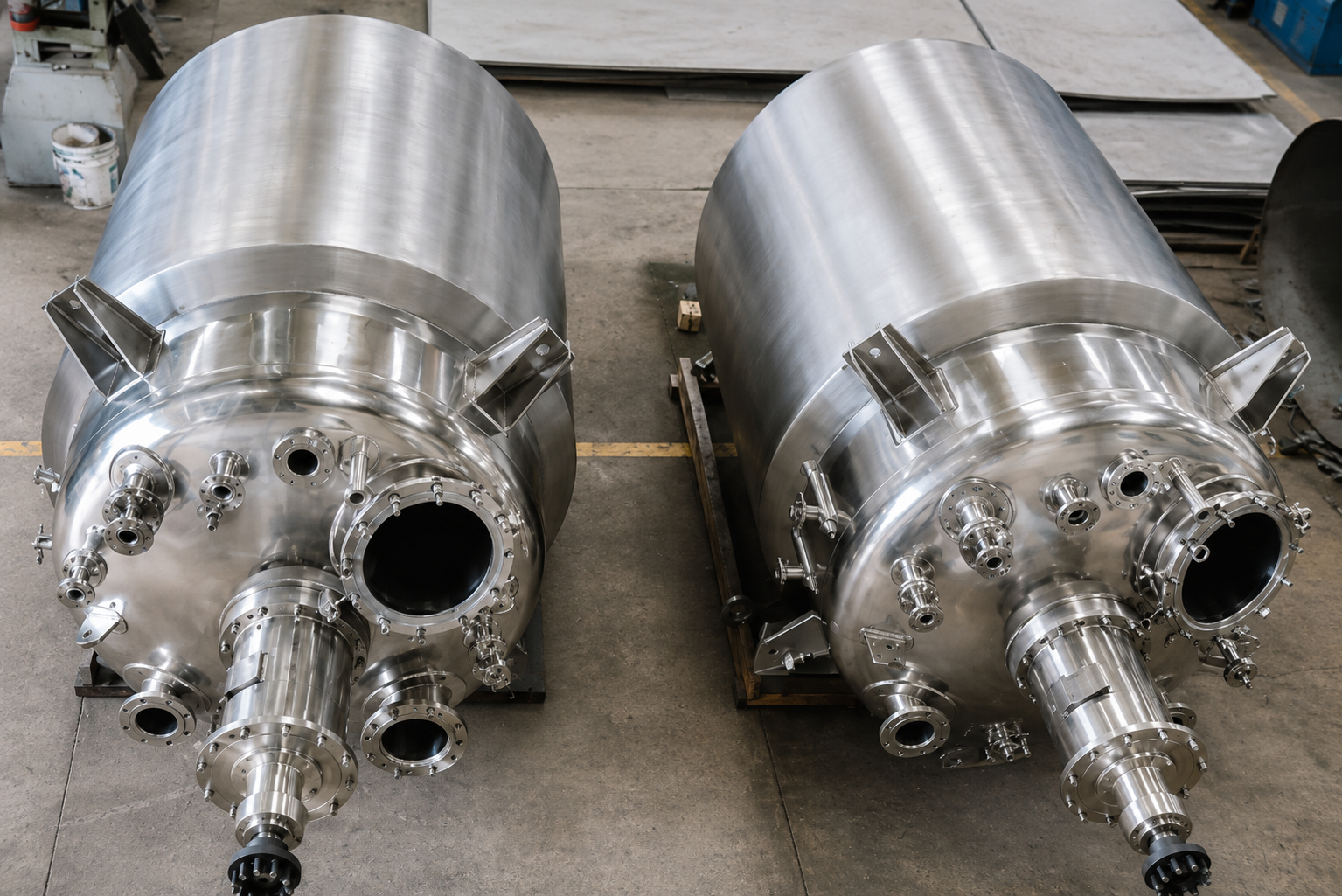

Limpet Coil Reactor

External half-pipe or limpet coils welded to the shell for heat transfer. Suitable for high-pressure heating/cooling media with restricted jacket volume.

Internal Coil Reactor

Helical or serpentine coils submerged inside the vessel for high-efficiency heat exchange in viscous or fouling process fluids.

High-Pressure Reactor

Heavy-duty construction with mechanical seals and ASME documentation for critical high-pressure petrochemical and chemical synthesis processes.

Gas Induction (Hydrogenators) Reactor

Specialized vessels for high-efficiency gas-liquid and gas-liquid-solid reactions such as hydrogenation, oxidation, and carbonylation processes.

Homogeniser Reactor

Equipped with high-shear homogenising agitators for emulsification, dispersion, and blending of immiscible phases in cosmetics, food, and pharma applications.

GMP Reactor

Electro-polished, crevice-free internals fabricated to GMP guidelines for pharmaceutical API, intermediate production, and regulated batch processes.

Cladded / Explo-bonded Reactor

Explosion-bonded multilayer construction combining corrosion-resistant alloys with structural metals for demanding industrial and corrosive service environments.

High Speed Reactor

Designed for fast-reaction kinetics and rapid mixing with high-RPM agitator assemblies, mechanical seal systems, and reinforced baffles for turbulent-regime processes.

Technical Data

Parameter	Details / Range
MOC — Stainless Steel	304 / 304L / 316 / 316L / 316TI / 321 / etc.
MOC — Exotic Metals / Alloy Metals	Duplex / Super Duplex / Inconel / Hastelloy / CuNi / 904L / SS-347 / etc.
MOC — Carbon Steel / Mild Steel	SA 516 Gr. 60/70 / IS 2062 / SA-333 / SA-537 / GR6 / etc.
Surface Finish	Blasting / Painting / Mirror / Matte / Electro-polished
Coating / Lining	ETFE / HALAR / Fluoropolymer Coating / Thermal Spray Metal Coating / Roto lining
Agitator Type	Anchor Turbine Paddle Helical Propeller Maxblend Impeller Retreat Curve Impeller Pitched Blade Hydrofoil Anchor Impeller

Buying Guide & Enquiries

Industrial Reactor Manufacturing for Domestic & Export Projects

Creative Engineering is an ASME & ISO certified process equipment manufacturer based in Ankleshwar, Gujarat. We manufacture every unit to your drawings, design code and material of construction, and supply customers across India as well as export projects. Share your specifications with our team to receive a quotation (RFQ).

What is a Reactor? Types, Applications & Manufacturing Guide | Send your RFQ

Get in Touch

Ready to Start Your Project?

Request a Quote

Custom Reactor Quotation

All reactors are fully made-to-order. Share your process parameters — capacity, MOC, pressure, temperature, agitator type — and our engineering team will design it for you.

Email Us

Technical Support

Speak with Our Engineers

Questions about MOC selection, pressure rating, agitator design, or GMP compliance? Our engineering team is available to help you spec the right reactor for your process.

+91 91743 99000 Visit Website

Reactor FAQs

Who manufactures reactors in Gujarat?

Creative Engineering is an ASME and ISO 9001 certified process equipment manufacturer based in Ankleshwar, Gujarat. We design and fabricate reactors for chemical, pharmaceutical and allied industries across India.

Are your reactors made to order?

Yes. Every reactor is built to the client's specification, including size, design pressure, material and configuration. Our engineering team handles sizing, design and fabrication.

Which industries use your reactors?

We supply Oil & Gas, Agro, Specialty Chemicals, APIs and Intermediates, Petrochemicals, Pharmaceutical, Fertilizer and Distillation system projects.

What certifications does Creative Engineering hold?

Our fabrication is backed by ASME U Stamp and R Stamp, National Board (NB) certification, ISO 9001 and ISO 3834.

How can I get a quotation for a reactor?

Call +91 91743 99000 or use the Contact Us page with your requirements. Our team will respond with a quotation.

Do you export reactor to other countries?

Yes. We quote and supply reactor to buyers in the UAE, Saudi Arabia, Oman, Qatar, Kuwait, Egypt, Nigeria, Kenya, South Africa, Bangladesh, Sri Lanka, Indonesia, Malaysia, Singapore, Thailand, Vietnam, the United Kingdom, Germany, the USA, Canada, Brazil and Australia, among others. Share your destination country with your requirement.
