Storage Tanks

Storage tanks offered across a wide capacity range from 1 KL to 200 KL and above, in both atmospheric and low-pressure configurations. Available in vertical or horizontal orientation with a choice of roof and bottom styles, fabricated as per API 650 / API 620 and ASME Section VIII where pressurized service is required.

View Specifications

200 KL+

Max Capacity

Vertical

Orientation

Horizontal

Orientation

API 650

Standard

API 650 / 620 ASME Sec. VIII ISO 9001:2015 IBR Approved

1 / 2

Configuration 01

Configuration 02

Tank Types

Available Configurations

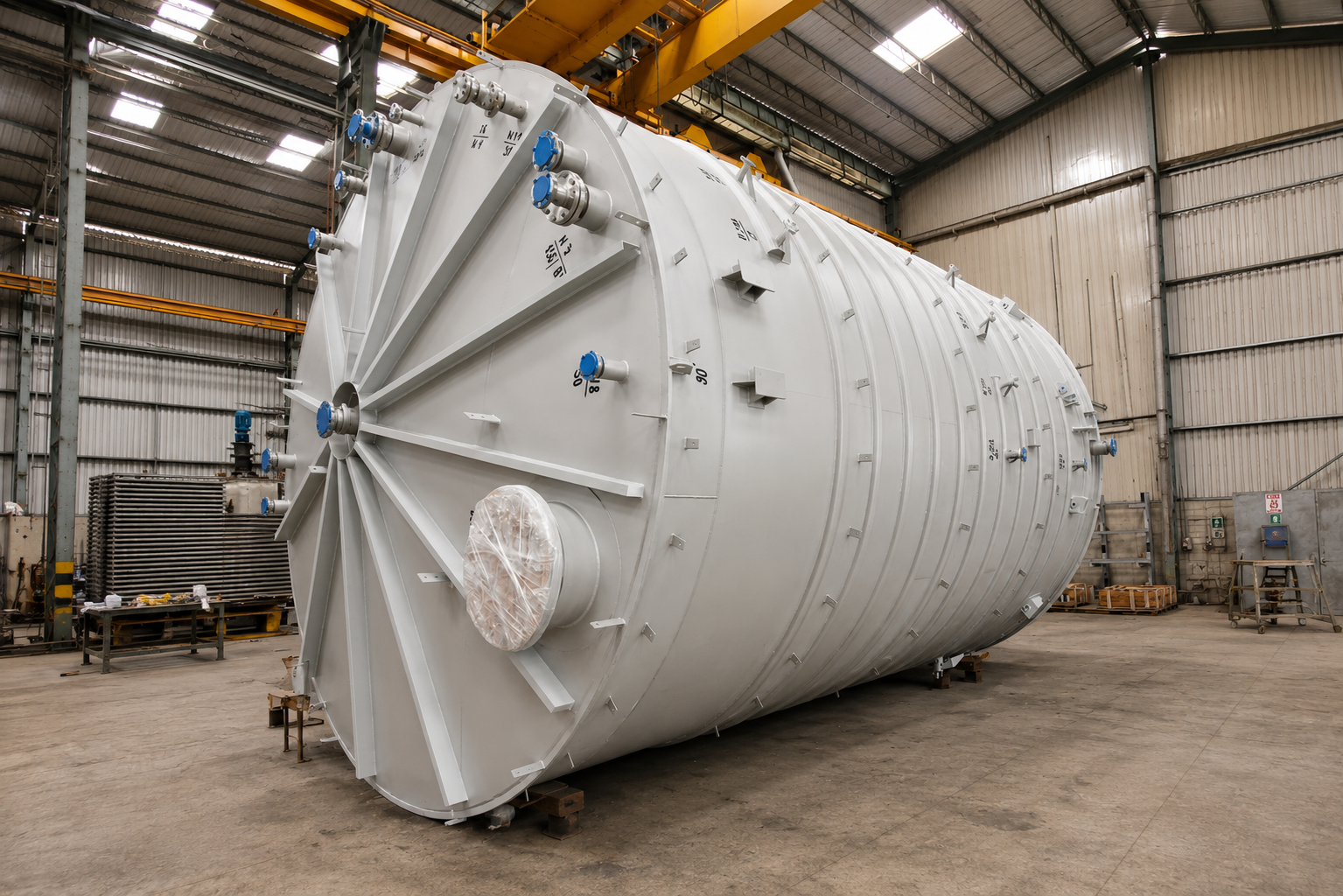

Every storage tank is fabricated to order to match client capacity, material, and process requirements. Standard and custom configurations are available across a wide range of sizes, roof styles, and materials of construction.

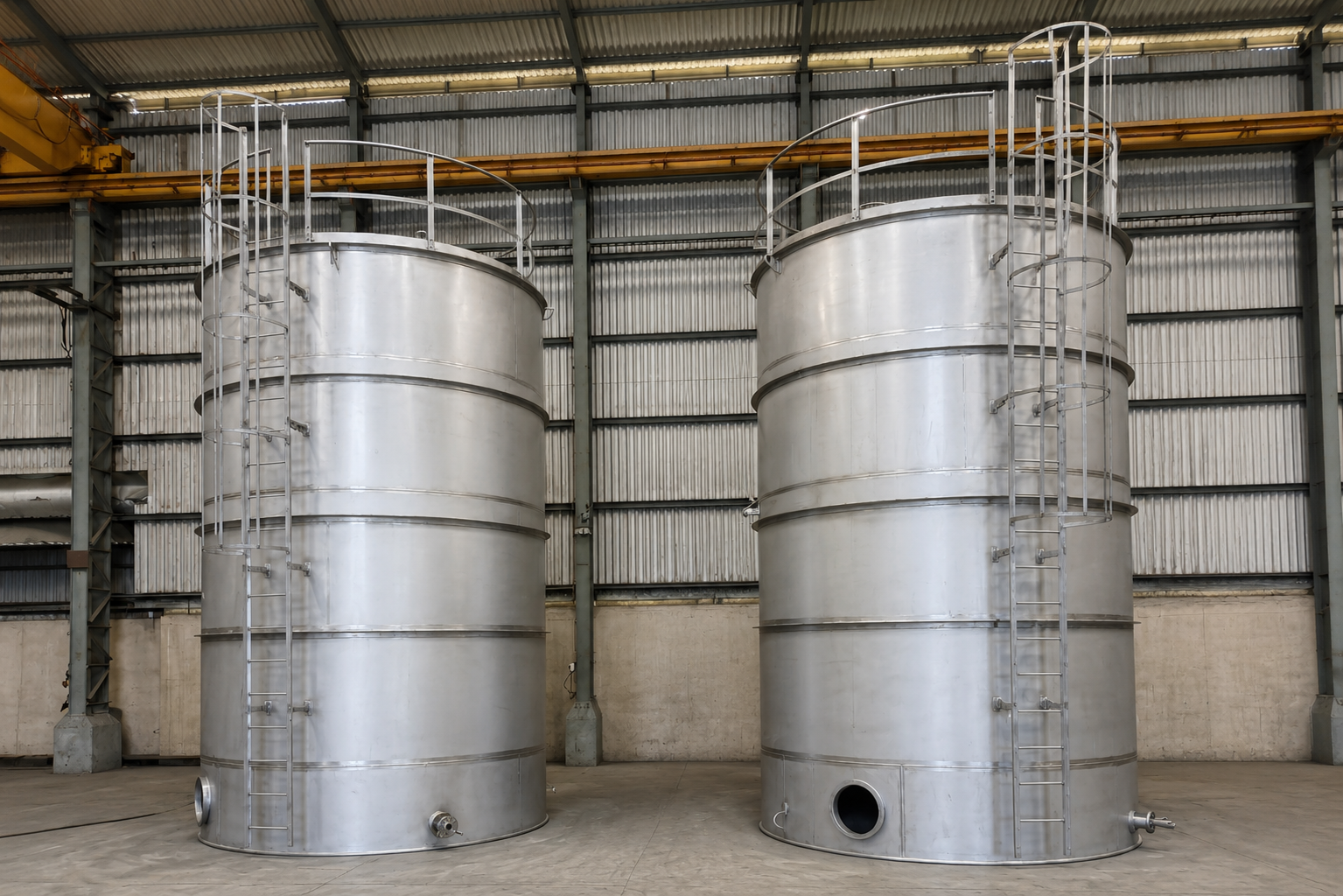

Vertical Storage Tank

Upright cylindrical tanks with flat, conical, or dished roofs for bulk liquid storage. Available from 1 KL to 200 KL and above in atmospheric and low-pressure service.

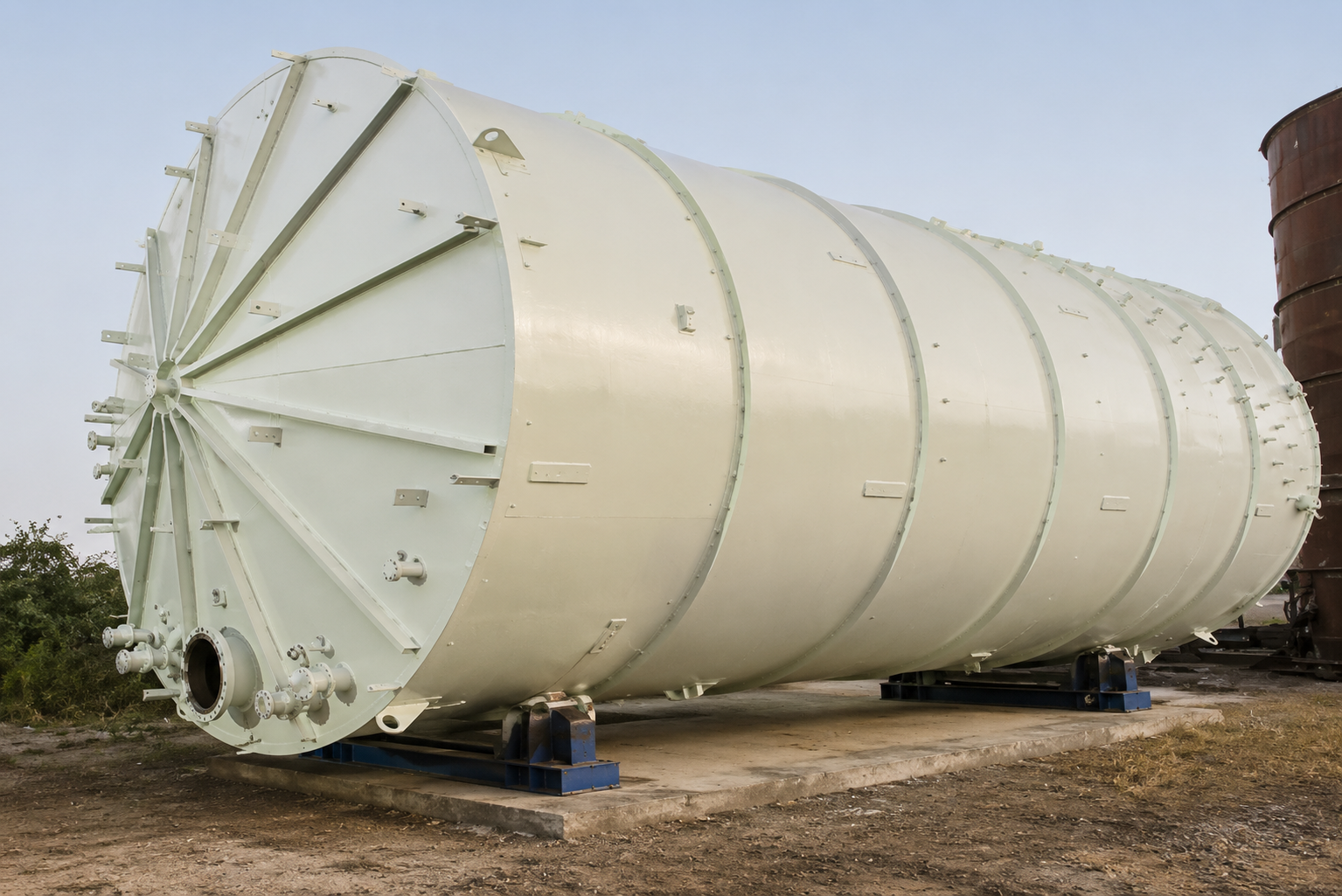

Horizontal Storage Tank

Saddle-supported horizontal tanks for compact site layouts. Suitable for liquid fuel, chemicals, and water storage where overhead clearance is restricted.

Atmospheric Tank

Open-top and fixed-roof tanks for atmospheric liquid storage per API 650. For water, chemicals, petroleum products, and process liquids at ambient pressure.

Low-Pressure Tank

Internally pressurized tanks per API 620 / ASME Section VIII for low-pressure gas or vapor service. Includes pressure-vacuum relief valves and safety fittings.

Sloped Bottom Tank

Inclined floor with low-point drain for complete self-draining. Mandatory for pharmaceutical, food, and zero-residue chemical processes.

Conical / Dished Roof Tank

Fixed-roof tanks with conical or dished (torispherical / ellipsoidal) top heads for applications requiring enhanced drainage, structural integrity, or mild internal pressure.

Technical Data

Design Specifications

Parameter	Details / Range
MOC — Stainless Steel	304 / 304L / 316 / 316L / 316TI / 321 / etc.
MOC — Exotic Metals / Alloy Metals	Duplex / Super Duplex / Inconel / Hastelloy / CuNi / 904L / SS-347 / etc.
MOC — Carbon Steel / Mild Steel	SA 516 Gr. 60/70 / IS 2062 / SA-333 / SA-537 / GR6 / etc.
Orientation	Vertical / Horizontal
Roof Options	Flat / Conical / Dished (torispherical / ellipsoidal)
Bottom Options	Flat / Dished / Slop bottom

Get in Touch

Ready to Start Your Project?

Request a Quote

Custom Tank Quotation

All storage tanks are fully made-to-order. Share your requirements — capacity, orientation, MOC, stored fluid, roof type, and applicable standards — and our engineering team will configure and quote accordingly.
